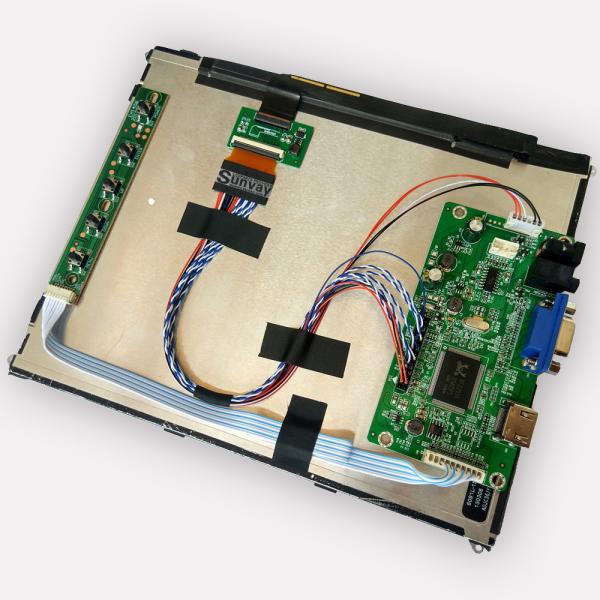

LP097X02-SLEA LG Display 9.7" 1024(RGB)×768 200 cd/m² INDUSTRIAL LCD DISPLAY

LG Display LP097X02-SLEA Application Details

Basic Information :	Brand		Model	LP097X02-SLEA 10 Compatible
	Type	LCM a-Si TFT-LCD	Used For
	Screen Size	9.7"	Alias	LP097X02 (SL)(EA)
Environment :	Storage Temp.	-20 ~~ 60 °C	Operating Temp.	0 ~~ 50 °C

LG Display LP097X02-SLEA Mechanical Details

Pixel Features :	Resolution	1024(RGB)×768, XGA	Dot Pitch(mm)	0.064×0.192 (H×V)
Pixel Features :	Pixel Format	RGB Vertical Stripe	Pixel Pitch(mm)	0.192×0.192 (H×V) [132PPI]
Mechanical Size :	Active Area(mm)	196.608(H) × 147.456(V)	Bezel Area(mm)	201.40(H) × 152.26(V)
Mechanical Size :	Outline Dim.(mm)	210.35(H) × 166.25(V)	Depth(mm)	3.4/5.95 (Max.)
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	4:3 (H:V)	Orientation	Landscape type
Mounting :	Face mounting holes (8 pcs) on left, right, up slugs
Other Spec :	Weight	160g (Max.)	Treatment	Glare (Haze 0%), Hard coating (3H), Antireflection

LG Display LP097X02-SLEA Optical Details

Basic Information :	Luminance(cd/m²)	200 (Typ.)	Contrast Ratio	600:1 (Typ.) (Transmissive)
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Display Mode	S-IPS, Normally Black, Transmissive
	Best View on	Symmetry	Response(ms)	35 (Typ.)(Tr+Td)
Color Performance :	White Coordinate	X:0.313; Y:0.329	Display Colors	262K (6-bit)
Color Performance :	Color Temperature	6485K	White Uniformity	1.45/1.75 (Typ./Max.)(13 points)
1931 Color Gamlt :	NTSC Ratio	48%	sRGB	67% coverage
	Adobe RGB	50% coverage	DCI-P3	50% coverage
	Rec.2020	36% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LP097X02-SLEA Interface Details

Signal Electrical :	Voltage Supply	3.3V (Typ.)		Current Supply	240/280mA (Typ./Max.)
Signal Electrical :	Consumption	0.80/0.92W (Typ./Max.)
Signal Type :	LVDS (1 ch, 6-bit)			Signal Voltage	-
Interface Features :	Position	-		Type	Connector
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail :	I-PEX	20474-030E-12	1 pcs	30 pins	0.4 mm	LVDS-30P1C6B-070B

LG Display LP097X02-SLEA Backlight Details

Backlight Features:	Shape	6 strings	Type	WLED	Position	Edge light type
Backlight Features:	Replacement	-	Quantity	6S6P	Life Time	10K(Min.) (Hours)
Lamp Electrical :	Voltage Supply			Current Supply	5/20/25mA (Min./Typ./Max.)
Lamp Electrical :	Consumption	2.3/2.8W (Typ./Max.)
Interface Features :	Position	-		Type	Included in panel signal interface
Backlight Driver :	No
