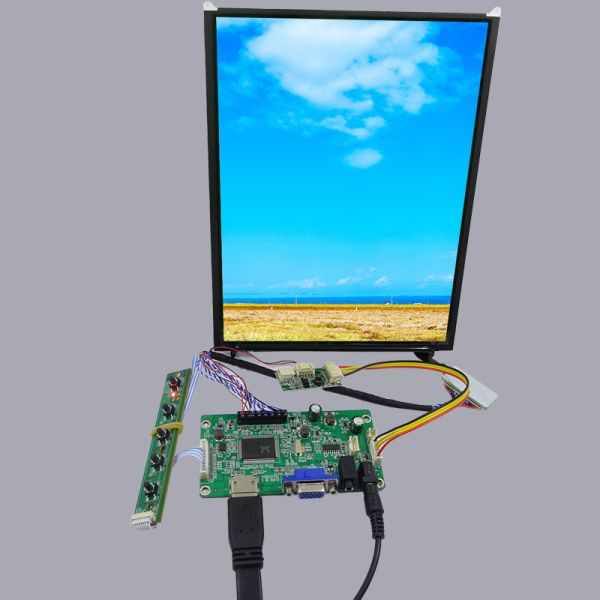

LP097X02-SLA3 LG Display 9.7" 1024(RGB)×768 400 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	LG DISPLAY
Model Number :	LP097X02-SLA3
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :	1000PCS
Delivery Time :	1-2 DAYS

Add to Cart

Product Details
Company Profile

LP097X02-SLA3 LG Display 9.7" 1024(RGB)×768 400 cd/m² INDUSTRIAL LCD DISPLAY

LG Display LP097X02-SLA3 Application Details

Basic Detail :	Manufacturer		Model Name	LP097X02-SLA3 10 Compatible
	Panel Type	a-Si TFT-LCD , LCM	Another Name	LP097X02 (SL)(A1)
	Panel Size	9.7 inch	Designed For
Maximum Ratings :	OP Temperature	0 ~ 50 °C	ST Temperature	-20 ~ 60 °C
Maximum Ratings :	Vibration Level	-

LG Display LP097X02-SLA3 Optical Details

Basic Information :	Luminance	400 cd/m² (Typ.)	Contrast Ratio	600 : 1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	30 (Typ.)(Tr+Td) (ms)
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Operating Mode	IPS, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Support Color	262K (6-bit)
Color Performance :	Color Temperature	6485K	White Uniformity	1.40/1.60 (Typ./Max.)(13 points)
1931 Color Gamlt :	NTSC Ratio	48%	sRGB	67% coverage
	Adobe RGB	50% coverage	DCI-P3	50% coverage
	Rec.2020	36% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LP097X02-SLA3 Mechanical Details

Pixel Features :	Number of Pixel	1024(RGB)×768 [XGA]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.064×0.192 mm	Pixel Pitch(W×H)	0.192×0.192 mm [132PPI]
Physical Size :	Active Viewing	196.608(W)×147.456(H) mm	Overall Dim.	210.53(W)×166.53(H) mm
Physical Size :	Bezel Opening	201.40(W)×152.26(H) mm	Overall Depth	3.55/5.82 (Max.) mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio(W:H)	4:3	Shape Style
Fixation :	Face mounting holes (8 pcs) on left, right, down slugs
Other Detail :	Mass	160g (Max.)	Surface	Glare (Haze 0%), Hard coating (3H), Antireflection

LG Display LP097X02-SLA3 Interface Details

Signal Electrical :	Input Current	240/280mA (Typ./Max.)		Input Voltage	3.3V (Typ.)
Signal Electrical :	Consumption	0.8/0.92W (Typ./Max.)	Signal Interface	LVDS (1 ch, 6-bit)
Interface Features :	Position	-	Physical Type	Connector
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Signal Interface :	I-PEX	20474-030E-12	1 pcs	0.4 mm	30 pins	LVDS-30P1C6B-070B

LG Display LP097X02-SLA3 Lightting Details

Lamp Features:	Lamp Shape	6 strings	Lamp Type	WLED	Position	Edge light type
Lamp Features:	Exchange	-	Amount	6S6P	Life	10K(Min.) (Hours)
Lamp Electrical :	Input Current	5/20/25mA (Min./Typ./Max.)		Input Voltage
Lamp Electrical :	Consumption	2.1/2.6W (Typ./Max.)
Interface Features :	Position	-	Physical Type	Included in panel signal interface
Backlight Driver :	No

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
