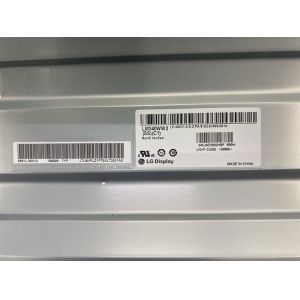

LM340WW2-SSC1 LG Display 34" 2560(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	LG DISPLAY
Model Number :	LM340WW2-SSC1
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :	600PCS
Delivery Time :	1-2 DAYS

Add to Cart

Product Details
Company Profile

LM340WW2-SSC1 LG Display 34" 2560(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY

LG Display LM340WW2-SSC1 Application Features

Basic Information :	Manufacturer	Panel Model	Panel Type	Alias
Basic Information :		LM340WW2-SSC1	a-Si TFT-LCD , LCM	LM340WW2 (SS)(C1)
Environment :	RoHS State	Operating Temp.	Storage Temp.	Vibration Level
Environment :		0 ~ 50 °C	-20 ~ 60 °C

LG Display LM340WW2-SSC1 Optical Features

Basic Information :	Luminance (cd/m²)	Viewing Angle (L/R/U/D)	Response Time (ms)
	300 (Typ.)	89/89/89/89 (Typ.)(CR≥10)	14 (Typ.)(G to G)
	Best View on	Display Mode	Contrast Ratio
	Symmetry	IPS, Normally Black, Transmissive	1000 : 1 (Typ.) (Transmissive)
Dispaly Color :	Color Temperature	Display Colors	White Coordinate
Dispaly Color :	6485K	1.07B (8-bit + Hi-FRC)	X:0.313; Y:0.329
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	78%	100%	78%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	81%	58%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation :	1.33 (Max.)(9 points)

LG Display LM340WW2-SSC1 Mechanical Features

Panel Size :	34"
Pixel Features :	Pixel Format	Pixel Configuration	Pixel Pitch (mm)	Dot Pitch (mm)
Pixel Features :	2560(RGB)×1080 [CSHD]	RGB Vertical Stripe	0.312×0.312 [81PPI]	0.104×0.312
Mechanical Size :	Active Area (mm)	Bezel Area (mm)	Outline Dimension (mm)	Outline Depth (mm)
Mechanical Size :	798.72(H) × 336.96(V)	-	809.9(H) × 358.2(V)	9.8 (Typ.) mm
Outline Features :	Form Factor	Orientation	Aspect Ratio	Shape Style
Outline Features :	Curved Display, R3800	Landscape type	21:9 (H:V)	3-side borderless
Mounting :	Rear mounting holes
Other Detail :	Weight	Panel Cover	Treatment
Other Detail :	4.00±0.20Kgs	-	Antiglare (Haze 25%), Hard coating (3H)

LG Display LM340WW2-SSC1 Backlight Features

Lamp Features:	Type	Position	Quantity	Shape	Life(Hours)	Lamp Exchange
Lamp Features:	WLED	Edge light type	12S4P×2CN	4 strings × 2CN	30K(Min.)	-
WLED Electrical :	Voltage Supply		Current Supply			Power
WLED Electrical :	34.6±2.4V		90/95mA (Typ./Max.)			24.9/26.6W (Typ./Max.)
Interface Features :	Position	Backlight Driver				Type
Interface Features :		No				Connector
Interface Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
Interface Detail :	JST	BM06B-SHJS-TB(HF)	1.0 mm	6 pins	2 pcs	BLE-6PINS-CCAACC

LG Display LM340WW2-SSC1 Interface Features

Panel Driving Electrical :	Voltage Supply		Current Supply			Power
Panel Driving Electrical :	10.0V (Typ.)		1.30/1.63A (Typ./Max.)			13.0/16.3W (Typ./Max.)
Interface Features :	Position	Signal				Type
Interface Features :		eDP (2 ch, 4 Lanes)				Connector
Connector Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
Connector Detail :	I-PEX	20525-060E-01	0.4 mm	60 pins	1 pcs

LG Display LM340WW2-SSC1 Packing Features

Package Box :	Quantity	Weight	Box Size
Package Box :	11 pcs / box	-	934×4550×542 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
