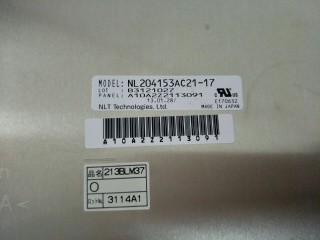

21.3 Inch Hight Brightness sRGB TFT LCD NL204153AC21-17 For Medical
1. Main Information:
The NL204153AC21-17 is a 21.3 inch diagonal a-Si TFT-LCD display
panel product from NEC LCD Technologies, Ltd. with an integral WLED
backlight system, With LED Driver , without touch screen.
It features an operating temperature range of 0 ~ 60°C , a storage
temperature range of -20 ~ 60°C , and the maximal vibration level
of 1.2G (11.76 m/s²). It's general features are following: sRGB,
Hight Brightness, WLED Backlight, Life ≥ 70K hours, With LED
Driver, 10 bit, Matte . Based on its features,this model be applied
to Medical Imaging etc.
2. NEC NL204153AC21-17 Mechanical Features:
| Panel Size : | 21.3 inch |
|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
|---|
| 2048(RGB)×1536, QXGA | RGB Vertical Stripe | 0.0705×0.2115 mm | 0.2115×0.2115 mm [120PPI] |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
|---|
| 433.152×324.864 mm | 438.2×330.0 mm | 457×350 mm | 21.5/23.0 (Typ./Max.) mm |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
|---|
| Flat Rectangle | 4:3 (W : H) | Landscape type | - |
| Fixation : | Side mounting holes (4-M3) on left, right bezel |
|---|
| Other Features : | Panel Cover | Weight | Surface |
|---|
| - | 2.70/2.98Kgs (Typ./Max.) | Antiglare, Hard coating (2H) |
3. NEC NL204153AC21-17 Optical Features:
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|
| 800 cd/m² (Typ.) | UA-SFT, Normally Black, Transmissive | 1400:1 (Typ.) (Transmissive) |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed |
| 88/88/88/88 (Typ.)(CR≥10) | Symmetry | 20/20 (Typ.)(Tr/Td) (ms) |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
|---|
| 7502K | 1.07B (10-bit) | X:0.299; Y:0.315 |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
|---|
| 72% | 98% | 75% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 75% | 54% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Luminance Variation : | 1.25 (Max.)(9 points) |
|---|
| Performance | 3D Type | Outdoor Visibility | Reflectance |
|---|
| - | Sunlight Readable | - |
4. NEC NL204153AC21-17 Backlight Features:
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|
| WLED | Edge light type (Top and Bottom) | - | - | 70K(Typ.) | - |
| Interface Features : | Position | Type | WLED Driver |
|---|
| - | Connector | With LED Driver |
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
|---|
| HRS | DF3Z-10P-2H | 1 pcs | 2.0 mm | 10 pins | |
| JAE | IL-Z-9PL-SMTYE | 1 pcs | 1.25 mm | 9 pins | |
| Driver Electrical : | Current Input | Voltage Input | Consumption |
|---|
| 4.2/5.8A (Typ./Max.) | 12.0±0.6V | - |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade
LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you
6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of
payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will
get reply within 24 hours.
