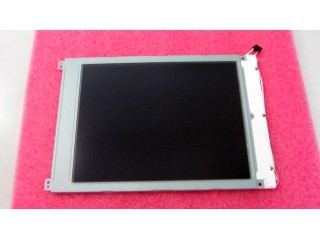

LM641836R 9.4 INCH SHARP TFT-LCD 640(RGB)×480, VGA PIXEL-25 ~ 60 °C
Industrial LCD Panel
1. Main Information:
LM641836R is a 9.4" diagonal FSTN-LCD display panel product from
Sharp Corporation (hereafter called Sharp), with an integral CCFL
backlight system, without backlight driver, without touch screen.
It features an operating temperature range of 0 ~ 45°C , a storage
temperature range of -25 ~ 60°C . Based on its features, Panelook
recommend that this model be applied to Industrial etc.
2. Sharp LM641836R Optical Details
| Basic Information : | Luminance | 70 cd/m² (Typ.) | Contrast Ratio | 11 : 1 (Typ.) (Transmissive) |
|---|
| Good View at | - | Response Speed | 550 (Typ.)(Tr+Td) (ms) |
| Viewing Angle | - | Operating Mode | STN, Black/White mode, Transmissive |
| Color Performance : | Chromaticity | - | Support Color | Monochrome |
|---|
3. Sharp LM641836R Mechanical Details
| Pixel Features : | Number of Pixel | 640×480 [VGA] | Arrangement | Rectangle |
|---|
| Dot Pitch(W×H) | 0.30×0.30 mm | Pixel Pitch(W×H) | 0.30×0.30 mm [84PPI] |
| Physical Size : | Active Viewing | 191.97(W)×143.97(H) mm | Overall Dim. | 260(W)×174(H) mm |
|---|
| Bezel Opening | 201.4(W)×153.4(H) mm | Overall Depth | 7.0 (Max.) mm |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
|---|
| Aspect Ratio(W:H) | 4:3 | Shape Style | - |
| Other Detail : | Mass | 340g | Surface | - |
|---|
4. Sharp LM641836R Lightting Details
| Lamp Features: | Lamp Shape | - | Lamp Type | CCFL | Position | Edge light type (Bottom side) |
|---|
| Exchange | - | Amount | 1 pcs | Life | - |
| Interface Features : | Position | - | Physical Type | Connector |
|---|
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
|---|
| | 1 pcs | | 4 pins | |
| Backlight Driver : | No |
|---|
5. FAQ:
Q1: What's the quality of your LCD Panel?
A : Various quality such as 100% New & Original OEM New, A Grade
LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you
6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of
payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will
get reply within 24 hours.
