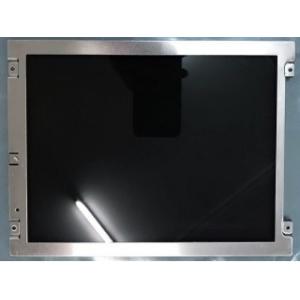

NL6448BC26-26 8.4 INCH NEC TFT-LCD 640(RGB)×480 [VGA] 95PPI PIXEL
-30 ~ 80 °C industrial LCD panel
1. Main Information:
The NL6448BC26-26 is a 8.4 inch diagonal a-Si TFT-LCD display panel product from NEC LCD
Technologies, Ltd. (hereafter called NEC), with an integral WLED backlight system, without backlight
driver, without touch screen. It features an operating temperature
range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C ,
and the maximal vibration level of 2.0G (19.6 m/s²). It's general
features are summarized by Panelook in the following: Wide
Temperature, Lamp Repaceable, WLED Backlight, Life ≥ 70K hours,
180° Reverse . Based on its features, Panelook recommend that this
model be applied to Industrial etc
2. NEC NL6448BC26-26 Mechanical Details
| Pixel Features : | Resolution | 640(RGB)×480, VGA | Dot Pitch(mm) | 0.089×0.267 (H×V) |
|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.267×0.267 (H×V) [95PPI] |
| Mechanical Size : | Active Area(mm) | 170.88(H) × 128.16(V) | Bezel Area(mm) | 174.0(H) × 131.4(V) |
|---|
| Outline Dim.(mm) | 200(H) × 152(V) | Depth(mm) | 8.2±0.5 |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | - |
|---|
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type |
| Mounting : | Face mounting holes (4-Φ2.8) on left, right bezel |
|---|
3. NEC NL6448BC26-26 Optical Details
| Basic Information : | Luminance(cd/m²) | 500 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive |
| Best View on | - | Response(ms) | 3/15 (Typ.)(Tr/Td) |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K (6-bit) |
|---|
| Color Temperature | 6485K | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) |
| 1931 Color Gamlt : | NTSC Ratio | 40% | sRGB | 57% coverage |
|---|
| Adobe RGB | 42% coverage | DCI-P3 | 42% coverage |
| Rec.2020 | 30% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4.NEC NL6448BC26-26 Backlight Details
| Backlight Features: | Shape | 3 strings | Type | WLED | Position | Edge light type (Top side) |
|---|
| Replacement | Replaceable (84LHS16) | Quantity | 3 strings | Life Time | 70K(Typ.) (Hours) |
| Lamp Electrical : | Voltage Supply | 13.3/15.0/17.0V (Min./Typ./Max.) | Current Supply | 50/55mA (Typ./Max.) |
|---|
| Interface Features : | Position | - | Type | Connector |
|---|
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
|---|
| JST | SM08B-SRSS-TB | 1 pcs | 8 pins | 1.0 mm | BLE-8PINS-ACACACNN |
| Backlight Driver : | No |
|---|
5.FAQ:
Q1:What's the quality of your LCD Panel?
A:Various quality such as 100% New & Original OEM New, A Grade LCD,
A- LCD Panel etc.
Q2:What is your return and refund policy?
A:We provide you excellent after-sales services, and promise you
6-month warranty after shipping to assure you a stable
performance.
3:How long is the lead time?
A:The lead time is about 1-3 working days after receipt of payment.
Q4:How can I get the quotation?
A:Please enquire via Skype,Email,Whatsapp or telephone. You will
get reply within 24 hours.
