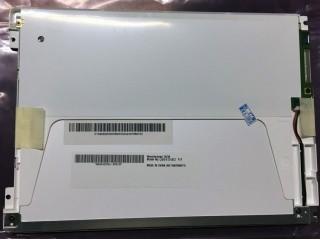

8.4 Inch 20 pins Connector TFT-LCD G084SN03 V3 With LED Driver
1. Main Information:
G084SN03 V3 (Alias: G084SN03 V.3) is a 8.4 Inch diagonal a-Si
TFT-LCD display panel product from AU Optronics Corp.
With an integral WLED backlight system, With LED Driver , without
touch screen. It features an operating temperature range of -20 ~
70°C , a storage temperature range of -20 ~ 70°C , and the maximal
vibration level of 1.5G (14.7 m/s²).
It's general features are following: Lamp Repaceable, WLED
Backlight, With LED Driver, U/D,L/R Reverse, 6/8 bit, Matte .
Based on its features, this model be applied to Industrial etc.
2. AUO G084SN03 V3 Optical Details:
| Basic Information : | Luminance | 250 cd/m² (Typ.) | Contrast Ratio | 600 : 1 (Typ.) (Transmissive) |
|---|
| Good View at | - | Response Speed | 20/10 (Typ.)(Tr/Td) (ms) |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Color Performance | Chromaticity | Wx:0.310; Wy:0.330 | Support Color | 262K/16.2M (6-bit / 6-bit + FRC) |
|---|
| Color Temperature | 6638K | White Uniformity | 1.33 (Typ.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 48% | sRGB | 68% coverage |
|---|
| Adobe RGB | 51% coverage | DCI-P3 | 50% coverage |
| Rec.2020 | 36% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
3.AUO G084SN03 V3 Mechanical Details:
| Pixel Features : | Number of Pixel | 800(RGB)×600 [SVGA] | Arrangement | RGB Vertical Stripe |
|---|
| Dot Pitch(W×H) | 0.071×0.213 mm | Pixel Pitch(W×H) | 0.213×0.213 mm [119PPI] |
| Physical Size | Active Viewing | 170.4(W)×127.8(H) mm | Overall Dim. | 203(W)×142.5(H) mm |
|---|
| Bezel Opening | 173.8(W)×131.2(H) mm | Overall Depth | 5.7 (Typ.) mm |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
|---|
| Aspect Ratio(W:H) | 4:3 | Shape Style | - |
| Fixation : | Face mounting holes (2-Φ3.0, 2-R1.5) |
|---|
| Other Detail : | Mass | TBD | Surface | Antiglare, Hard coating (3H) |
|---|
4.AUO G084SN03 V3 Lightting Details:
| Lamp Features: | Lamp Shape | 3 strings | Lamp Type | WLED | Position | Edge light type (Bottom side) |
|---|
| Exchange | Replaceable | Amount | 3 strings | Life | 30K(Typ.) (Hours) |
| Lamp Electrical : | Input Current | 25/26.3mA (Typ./Max.) | Input Voltage | 28.8/32.85V(Typ./Max.) |
|---|
| Consumption | 2.16/2.63W (Typ./Max.) |
| Interface Features : | Position | - | Physical Type | Connector |
|---|
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
|---|
| E&T | 3808K-F04N-02R | 1 pcs | 1.25 mm | 4 pins | |
| Backlight Driver : | With LED Driver |
|---|
| Driver Electrical : | Input Current | 230mA (Typ.) | Input Voltage | 12.0±1.2V |
|---|
| Consumption | 2.76/2.97W (Typ./Max.) |
5.AUO G084SN03 V3 Interface Details:
| Signal Electrical : | Input Current | 270/330mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) |
|---|
| Consumption | 0.9/1.2W (Typ./Max.) | Signal Interface | LVDS (1 ch, 6/8-bit) |
| Interface Features : | Position | - | Physical Type | Connector |
|---|
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
|---|
| STM | MSB24013P20 | 1 pcs | 1.0 mm | 20 pins | LVDS-20P1C8B-140A |
