    AA084VM01 Mitsubishi 8.4INCH 640×480 RGB 400CD/M2 WLED LVDS Operating Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : Mitsubishi
    Model Number : AA084VM01
    Certification : ISO9001
    Price :
    Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROW
    Supply Ability : 100PCS
    Delivery Time : 2-3 DAYS
    • Product Details
    • Company Profile

    AA084VM01 Mitsubishi 8.4INCH 640×480 RGB 400CD/M2 WLED LVDS Operating Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

    Mitsubishi AA084VM01 Overview

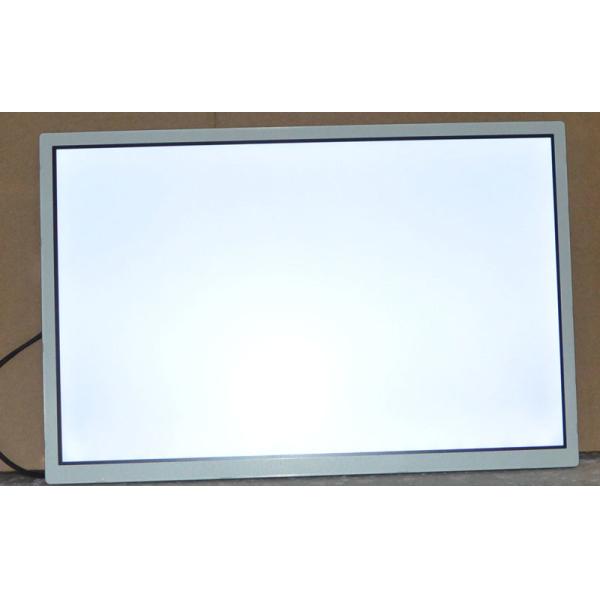

    The AA084VM01 is a 8.4 inch diagonal a-Si TFT-LCD display panel product from Mitsubishi Electric Corporation (hereafter called Mitsubishi), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.0G (9.8 m/s²).



    Mitsubishi AA084VM01 Application Features

    Basic Information :ManufacturerPanel ModelPanel TypeAlias
    AA084VM01a-Si TFT-LCD , LCM-
    Environment :RoHS StateOperating Temp.Storage Temp.Vibration Level
    -30 ~ 80 °C-30 ~ 80 °C-
    Used For :
    Specific Features :
      Remarks :Transflective

      Mitsubishi AA084VM01 Optical Features

      Basic Information :Luminance (cd/m²)Viewing Angle (L/R/U/D)Response Time (ms)
      400 (Typ.)50/35/25/50 (Typ.)(CR≥10)4/16 (Typ.)(Tr/Td)
      Best View onDisplay ModeContrast Ratio
      6 o'clockTN, Normally White, Transflective130 : 1 (Typ.) (Transmissive)
      Dispaly Color :Color TemperatureDisplay ColorsWhite Coordinate
      6485K262K/16.7M (6-bit / 6-bit + Hi-FRC)X:0.313; Y:0.329
      1931 Color Gamut :NTSC RatiosRGB CoverageAdobe RGB Coverage
      38%54%40%
      DCI-P3 CoverageRec.2020 CoverageRemarks
      40%29%sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
      White Variation :1.30 (Max.)(5 points)
      Performance :3D TechSunlight VisibilityReflectance
      -Sunlight Readable-

      Mitsubishi AA084VM01 Mechanical Features

      Panel Size :8.4"
      Pixel Features :Pixel FormatPixel ConfigurationPixel Pitch (mm)Dot Pitch (mm)
      640(RGB)×480 [VGA]RGB Vertical Stripe0.267×0.267 [95PPI]0.089×0.267
      Mechanical Size :Active Area (mm)Bezel Area (mm)Outline Dimension (mm)Outline Depth (mm)
      170.88(H) × 128.16(V)174.9(H) × 132.2(V)199.5(H) × 149(V)7.6/10.2 (Typ./Max.) mm
      Outline Features :Form FactorOrientationAspect RatioShape Style
      Flat RectangleLandscape type4:3 (H:V)
      Other Detail :WeightPanel CoverTreatment
      340g (Typ.)-Clear, Hard coating (3H)

      FAQ:

      Q1: What's the quality of your LCD Panel?


      A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.


      Q2: What is your return and refund policy?


      A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.


      Q3: How long is the lead time?


      A: The lead time is about 1-3 working days after receipt of payment.


      Q4: How can I get the quotation?


      A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
