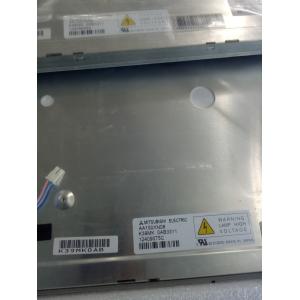

    Buy cheap AA150XN08 Mitsubishi 15INCH 1024×768 RGB 800CD/M2 CCFL LVDS Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISPLAY from wholesalers

    Buy cheap AA150XN08 Mitsubishi 15INCH 1024×768 RGB 800CD/M2 CCFL LVDS Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISPLAY from wholesalers
    • Buy cheap AA150XN08 Mitsubishi 15INCH 1024×768 RGB 800CD/M2 CCFL LVDS Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISPLAY from wholesalers
    • Buy cheap AA150XN08 Mitsubishi 15INCH 1024×768 RGB 800CD/M2 CCFL LVDS Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISPLAY from wholesalers
    • Buy cheap AA150XN08 Mitsubishi 15INCH 1024×768 RGB 800CD/M2 CCFL LVDS Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISPLAY from wholesalers
    • Buy cheap AA150XN08 Mitsubishi 15INCH 1024×768 RGB 800CD/M2 CCFL LVDS Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISPLAY from wholesalers

    AA150XN08 Mitsubishi 15INCH 1024×768 RGB 800CD/M2 CCFL LVDS Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : Mitsubishi
    Model Number : AA150XN08
    Certification : ISO9001
    Price : 130USD
    Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION
    Supply Ability : 500PCS
    Delivery Time : 3DAYS
    • Product Details
    • Company Profile

    AA150XN08 Mitsubishi 15INCH 1024×768 RGB 800CD/M2 CCFL LVDS Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISPLAY

    Mitsubishi AA150XN08 Overview

    The AA150XN08 (Alias: T-51863D150J-FW-A-AFN) is a 15.0 inch diagonal a-Si TFT-LCD display panel product from Mitsubishi Electric Corporation (hereafter called Mitsubishi), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -20 ~ 80°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized by Panelook in the following: Hight Brightness, Lamp Repaceable, Life ≥ 50K hours, Upside I/F, 180° Reverse, 6/8 bit, Matte , NCM. Based on its features, Panelook recommend that this model be applied to Industrial etc. According to the information stored in Panelook this model mass production on Q2, 2006, Now this model is discontinued. There are 1 items stock and 0 suppliers of this model on Panelook. We inputted this model's specification on Jun 22 2012 for the first time, and the latest update on Aug 2 2019. If you want to embed AA150XN08 LCM in your future product, Panelook strongly recommend that you should contact with Mitsubishi or it's agent to learn lateast production and specification detail. The AA150XN08 production status marked on Panelook.com is for reference only and should not be used as the basis for the user's decision making. All specification details are inputted by Panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.


    Mitsubishi AA150XN08 Mechanical Features

    Panel Size :15.0"
    Pixel Features :Pixel FormatPixel ConfigurationPixel Pitch (mm)Dot Pitch (mm)
    1024(RGB)×768 [XGA]RGB Vertical Stripe0.297×0.297 [85PPI]0.099×0.297
    Mechanical Size :Active Area (mm)Bezel Area (mm)Outline Dimension (mm)Outline Depth (mm)
    304.128(H) × 228.096(V)308.1(H) × 232.1(V)326(H) × 255(V)15.9±0.5 mm
    Outline Features :Form FactorOrientationAspect RatioShape Style
    Flat RectangleLandscape type4:3 (H:V)
    Mounting :Side mounting holes (4-M3) on left, right bezel
    Other Detail :WeightPanel CoverTreatment
    1.35Kgs (Typ.)-Antiglare, Hard coating (3H)

    • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.

    Mitsubishi AA150XN08 Optical Features

    Basic Information :Luminance (cd/m²)Viewing Angle (L/R/U/D)Response Time (ms)
    800 (Typ.)75/75/60/50 (Typ.)(CR≥10)6/19 (Typ.)(Tr/Td)
    Best View onDisplay ModeContrast Ratio
    6 o'clockTN, Normally White, Transmissive600 : 1 (Typ.) (Transmissive)
    Dispaly Color :Color TemperatureDisplay ColorsWhite Coordinate
    6485K262K/16.7M (6-bit / 6-bit + Hi-FRC)X:0.313; Y:0.329
    1931 Color Gamut :NTSC RatiosRGB CoverageAdobe RGB Coverage
    52%72%54%
    DCI-P3 CoverageRec.2020 CoverageRemarks
    54%39%sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
    White Variation :1.30 (Max.)(5 points) AA150XN08 Mitsubishi 15INCH 1024×768 RGB 800CD/M2 CCFL LVDS Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISPLAY
    Performance :3D TechSunlight VisibilityReflectance
    -Sunlight Readable-
    • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.

      Mitsubishi AA150XN08 Backlight Features

      Lamp Features:TypePositionQuantity AA150XN08 Mitsubishi 15INCH 1024×768 RGB 800CD/M2 CCFL LVDS Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISPLAYShapeLife(Hours)Lamp Exchange
      CCFLEdge light type (Top and Bottom)4 pcsStraight50K(Min.)Replaceable (AA-L5902174G01(Top), AA-L5902175G01(Bottom))
      CCFL Electrical :Voltage SupplyCurrent SupplyPower AA150XN08 Mitsubishi 15INCH 1024×768 RGB 800CD/M2 CCFL LVDS Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISPLAY
      620V (Typ.)3.5/6.5/8.0mA (Min./Typ./Max.)
      Operating FrequencyKick-off Voltage
      40/70KHz (Min./Max.)1300/1500/1650V (Min.)(Ta=+25/0/-20℃)
      Interface Features :PositionBacklight DriverType
      Upper left corner & down left cornerNoConnector
      Interface Detail :BrandModelPin PitchPin AmountQuantityConfiguration AA150XN08 Mitsubishi 15INCH 1024×768 RGB 800CD/M2 CCFL LVDS Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISPLAY
      JSTBHSR-02VS-13.5 mm2 pins2 pcsBLL-2PINS-HH
      JSTBHR-02VS-14.0 mm2 pins2 pcsBLL-2PINS-LL
      • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
