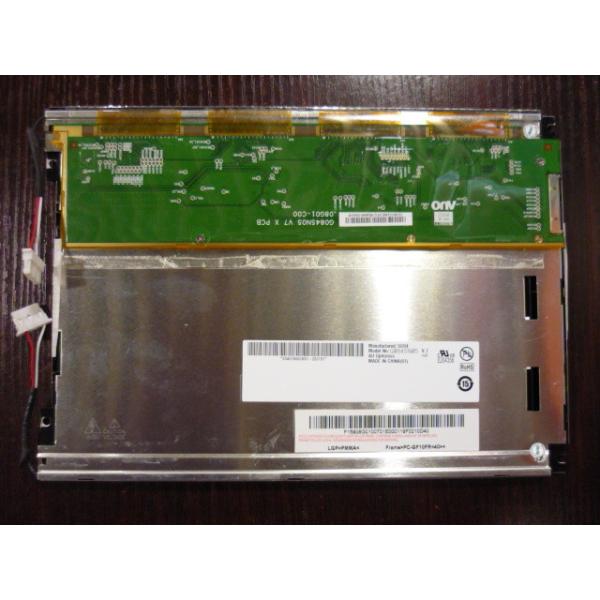

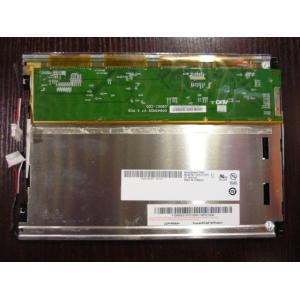

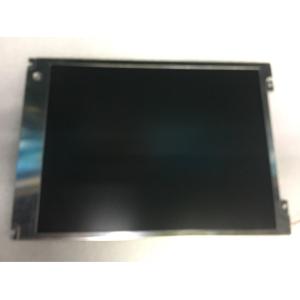

B084SN05 V0 AUO 8.4INCH 800×600RGB 500CD/M2 WLED LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	AUO
Model Number :	B084SN05 V0
Certification :	ISO9001
Price :	USD60
Payment Terms :	TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability :	100PCS
Delivery Time :	1-2 DAYS

Add to Cart

Product Details
Company Profile

B084SN05 V0 AUO 8.4INCH 800×600RGB 500CD/M2 WLED LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY

AUO B084SN05 V0 Application Details

Basic Info :	Panel Brand		Panel Model	B084SN05 V0
	Diagonal Size	8.4"	Application
	Panel Type	a-Si TFT-LCD , LCM	Model Alias	B084SN05 V.0

AUO B084SN05 V0 Mechanical Details

Pixel Features :	Pixel Format	800(RGB)×600 [SVGA]	Dot Pitch	0.071×0.213 mm (H×V)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.213×0.213 mm (H×V) [119PPI]
Mechanical Size :	Display Area	170.4×127.8 mm (H×V)	Bezel Area	-
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio	4:3 (H:V)	Shape Style

AUO B084SN05 V0 Optical Details

Basic Information :	Brightness	-	Contrast Ratio	-
	Viewing Angle	-	Optical Mode	TN, Normally White, Transmissive
	Viewing Direction	-	Response Time	-
Color Performance :	Chromaticity	-	Color Numbers	262K (6-bit)

B084SN05 V0 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 170.4(W)×127.8(H) mm. As a TN, Normally White, Transmissive LCM product, B084SN05 V0 can provides . Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. B084SN05 V0 utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm. For more latest product detail of B084SN05 V0 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with AUO or it's distributor. The above parameters are not from the datasheet, only as a reference, please use with caution!
