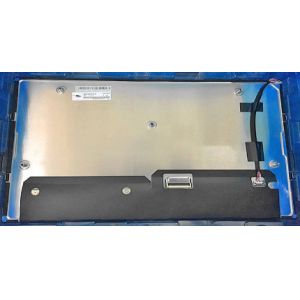

    Buy cheap B125XTN03.0 AUO 12.5INCH 1366×768RGB 300CD/M2 WLED eDP Operating Temp.: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY from wholesalers

    Buy cheap B125XTN03.0 AUO 12.5INCH 1366×768RGB 300CD/M2 WLED eDP Operating Temp.: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY from wholesalers
    • Buy cheap B125XTN03.0 AUO 12.5INCH 1366×768RGB 300CD/M2 WLED eDP Operating Temp.: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY from wholesalers
    • Buy cheap B125XTN03.0 AUO 12.5INCH 1366×768RGB 300CD/M2 WLED eDP Operating Temp.: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY from wholesalers

    B125XTN03.0 AUO 12.5INCH 1366×768RGB 300CD/M2 WLED eDP Operating Temp.: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : AUO
    Model Number : B125XTN03.0
    Certification : ISO9001
    Price : USD68
    Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROW
    Supply Ability : 200PCS
    Delivery Time : 1-2 DAYS
    • Product Details
    • Company Profile

    B125XTN03.0 AUO 12.5INCH 1366×768RGB 300CD/M2 WLED eDP Operating Temp.: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY

    AUO B125XTN03.0 Application Details

    Basic Information :BrandModelB125XTN03.0
    TypeLCM a-Si TFT-LCDUsed For


    Screen Size12.5"AliasAUO106C
    Environment :Storage Temp.-20 ~~ 60 °COperating Temp.0 ~~ 50 °C
    RoHSVibration1.5G (14.7 m/s²)

    AUO B125XTN03.0 Mechanical Details

    Pixel Features :Resolution1366(RGB)×768, WXGADot Pitch(mm)0.0675×0.2025 (H×V)
    Pixel FormatRGB Vertical StripePixel Pitch(mm)0.2025×0.2025 (H×V) [125PPI]
    Mechanical Size :Active Area(mm)276.615(H) × 155.52(V)Bezel Area(mm)-
    Outline Dim.(mm)290.5(H) × 181.4(V)Depth(mm)2.85/3.0 (Typ./Max.)
    Outline Features :Form StyleFlat RectangleOutline ShapeSlim (PCBA Flat, T≤3.2mm)
    Aspect Ratio16:9 (H:V)OrientationLandscape type
    Mounting :Without
    Other Spec :Weight250g (Max.)TreatmentAntiglare

    AUO B125XTN03.0 Optical Details

    Basic Information :Luminance(cd/m²)300 (Typ.)Contrast Ratio400:1 (Typ.) (Transmissive)
    Viewing Angle70/70/55/65 (Typ.)(CR≥10)Display ModeTN, Normally White, Transmissive
    Best View on6 o'clockResponse(ms)16 (Typ.)(Tr+Td)
    Color Performance :White CoordinateX:0.313; Y:0.329Display Colors262K (6-bit)
    Color Temperature6485KWhite Uniformity1.25/1.53 (Max.)(5/13 points)
    1931 Color Gamut :NTSC Ratio45%sRGB63% coverage
    Adobe RGB47% coverageDCI-P347% coverage
    Rec.202034% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    AUO B125XTN03.0 Electronics Details

    Frame Rate :60Hz
    Reverse Scan :No
    Power Consumption :4.3W (Max.)

    AUO B125XTN03.0 Interface Details

    Signal Electrical :Voltage Supply3.3V (Typ.)Current Supply333mA (Max.)
    Consumption1.1W (Max.)
    Signal Type :eDP (2 Lanes), eDP1.2Signal Voltage-
    Interface Features :PositionTypeConnector
    Interface Detail :BrandModelQuantityPinsPitchPin Configuration
    HRSKN38A-30S-0.5H1 pcs30 pins0.5 mmEDP-30P2L-060A

    AUO B125XTN03.0 Backlight Details

    Backlight Features:Shape-TypeWLEDPositionEdge light type
    Replacement-Quantity-Life Time15K(Min.) (Hours)
    Interface Features :Position-TypeIncluded in signal interface
    Backlight Driver :With LED Driver
    Driver Electrical :Voltage Supply5.0/12.0/21.0V (Min./Typ./Max.)Current Supply-
    Consumption3.2W (Max.)

    whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 276.615(W)×155.52(H) mm, outline size of 290.5(W)×181.4(H)×3(D) mm, with surface treament of Antiglare, net weight of 250g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a TN, Normally White, Transmissive LCM product, B125XTN03.0 can provides 300 cd/m² display brightness 400:1 transimissive contrast ratio, 70/70/55/65 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 16 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. B125XTN03.0 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.)
