A104SN03 V1 AUO 10.4INCH 800×600RGB 350CD/M2 WLED TTL Operating Temperature: -10 ~ 60 °C INDUSTRIAL LCD DISPLAY

Product Categories

Sapientia Display Co.,LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

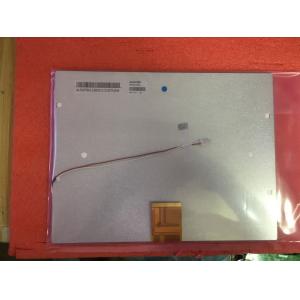

Buy cheap A104SN03 V1 AUO 10.4INCH 800×600RGB 350CD/M2 WLED TTL Operating Temperature: -10 ~ 60 °C INDUSTRIAL LCD DISPLAY from wholesalers

Buy cheap A104SN03 V1 AUO 10.4INCH 800×600RGB 350CD/M2 WLED TTL Operating Temperature: -10 ~ 60 °C INDUSTRIAL LCD DISPLAY from wholesalers

A104SN03 V1 AUO 10.4INCH 800×600RGB 350CD/M2 WLED TTL Operating Temperature: -10 ~ 60 °C INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	AUO
Model Number :	A104SN03 V1
Certification :	ISO9001
Price :	USD85
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :	350PCS
Delivery Time :	1-2DAYS

Add to Cart

Product Details
Company Profile

A104SN03 V1 AUO 10.4INCH 800×600RGB 350CD/M2 WLED TTL Operating Temperature: -10 ~ 60 °C INDUSTRIAL LCD DISPLAY

AUO A104SN03 V1 Application Details

Basic Info :	Panel Brand		Panel Model	A104SN03 V1
	Diagonal Size	10.4"	Application
	Panel Type	a-Si TFT-LCD , LCM	Model Alias	A104SN03 V.1
Reliability :	Operating Temp.	-10 ~ 60 °C	Storage Temp.	-20 ~ 70 °C
Reliability :	RoHS State		Vibration Rating	-

AUO A104SN03 V1 Mechanical Details

Pixel Features :	Pixel Format	800(RGB)×600 [SVGA]	Dot Pitch	0.088×0.264 mm (H×V)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.264×0.264 mm (H×V) [96PPI]
Mechanical Size :	Display Area	211.2×158.4 mm (H×V)	Bezel Area	213.2×160.4 mm (H×V)
Mechanical Size :	Outline Dim.	228.4×175.4 mm (H×V)	Outline Depth	6.2±0.3 mm
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio	4:3 (H:V)	Shape Style
Holes & Brackets :	Without
Other Features :	Weight	400±20g	Surface	Antiglare, Hard coating (3H)

AUO A104SN03 V1 Optical Details

Basic Information :	Brightness	350 cd/m² (Typ.)	Contrast Ratio	500:1 (Typ.) (Transmissive)
	Viewing Angle	75/75/50/60 (Typ.)(CR≥10)	Optical Mode	TN, Normally White, Transmissive
	Viewing Direction	6 o'clock	Response Time	30 (Typ.)(Tr+Td) (ms)
Color Performance :	Chromaticity	Wx:0.330; Wy:0.350	Color Numbers	262K/16.2M (6-bit / 6-bit + Dithering)
Color Performance :	Color Temperature	5598K	White Uniformity	1.25/1.33 (Typ./max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	52%	sRGB	68% coverage
	Adobe RGB	53% coverage	DCI-P3	53% coverage
	Rec.2020	39% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

AUO A104SN03 V1 Electronics Details

Frame Frequency :	60Hz
Reverse Scan :	No
Power Consumption :	3.4W (Max.)
Time Controller (T-CON) :	Embedded T-CON

AUO A104SN03 V1 Backlight Details

Back-light Features:	Lamp Shape	Array	Lamp Type	WLED	Life Time	10K(Min.) (Hours)
Back-light Features:	Replacement	No	Amount	3S12P	Position	Edge light type
Lamp Electrical :	Voltage Input	8.8/10.0/10.7V (Min./Typ./Max.)		Current Input	300mA (Typ.)
Lamp Electrical :	Consumption	3.0/3.21W (Typ./Max.)
Interface Features :	Type	Connector	Position	-	Lamp Driver	No
Interface Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Interface Detail :	JOIN TEK	JT1025-1021		2 pins	1 pcs	BLE-2PINS-AC

AUO A104SN03 V1 Interface Details

Signal Systerm :	TTL (1 ch, 6/8-bit) + SPI			Logic Voltage	GND≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Signal Electrical :	Voltage Input	3.3/11/15/-7V (Typ.)(VCC/AVDD/VGH/VGL)		Current Input	10/24/0.4/-0.4 (Typ.)(ICC/IDD/IGH/IGL)
Signal Electrical :	Consumption	0.43W (Typ.)
Interface Features :	Type	FPC	Position	-
FPC Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
FPC Detail :			0.5 mm	60 pins	1 pcs

AUO A104SN03 V1 Carton Details

Package Carton :	Amount	Net Weight	Carton Size (L×W×H)
Package Carton :	20 pcs / box	11.0 Kgs	483×296×355 mm

A104SN03 V1 AUO 10.4INCH 800×600RGB 350CD/M2 WLED TTL Operating Temperature: -10 ~ 60 °C INDUSTRIAL LCD DISPLAY

Product Tags:

50% NTSC TFT LCD Panel

AUO LCD Display WLED LVDS

Quality A104SN03 V1 AUO 10.4INCH 800×600RGB 350CD/M2 WLED TTL Operating Temperature: -10 ~ 60 °C INDUSTRIAL LCD DISPLAY for sale

A104SN03 V1 AUO 10.4INCH 800×600RGB 350CD/M2 WLED TTL Operating Temperature: -10 ~ 60 °C INDUSTRIAL LCD DISPLAY
