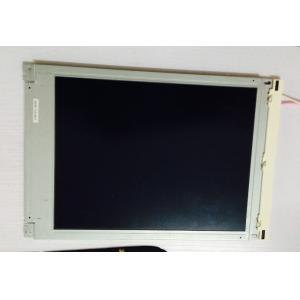

    Buy cheap G085VW01 V1 AUO 8.5INCH 800×480RGB 200CD/M2 CCFL TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY from wholesalers

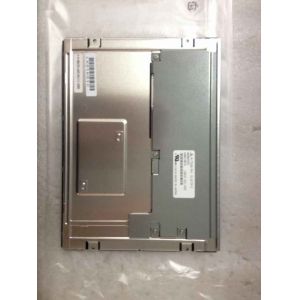

    Buy cheap G085VW01 V1 AUO 8.5INCH 800×480RGB 200CD/M2 CCFL TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY from wholesalers
    • Buy cheap G085VW01 V1 AUO 8.5INCH 800×480RGB 200CD/M2 CCFL TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY from wholesalers
    • Buy cheap G085VW01 V1 AUO 8.5INCH 800×480RGB 200CD/M2 CCFL TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY from wholesalers
    • Buy cheap G085VW01 V1 AUO 8.5INCH 800×480RGB 200CD/M2 CCFL TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY from wholesalers

    G085VW01 V1 AUO 8.5INCH 800×480RGB 200CD/M2 CCFL TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : AUO
    Model Number : G085VW01 V1
    Certification : ISO9001
    Price :
    Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROW
    Supply Ability : 100PCS
    Delivery Time : 1-2 DAYS
    • Product Details
    • Company Profile

    G085VW01 V1 AUO 8.5INCH 800×480RGB 200CD/M2 CCFL TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

    AUO G085VW01 V1 Application Details

    Basic Information :BrandModelG085VW01 V1
    TypeLCM a-Si TFT-LCDUsed For
    Screen Size8.5"AliasG085VW01 V.1
    Environment :Storage Temp.-35 ~~ 85 °COperating Temp.-30 ~~ 85 °C
    RoHSVibration1.5G (14.7 m/s²)

    AUO G085VW01 V1 Mechanical Details

    Pixel Features :Resolution800(RGB)×480, WVGADot Pitch(mm)0.077×0.231 (H×V)
    Pixel FormatRGB Vertical StripePixel Pitch(mm)0.231×0.231 (H×V) [109PPI]
    Mechanical Size :Active Area(mm)184.8(H) × 110.88(V)Bezel Area(mm)189.8(H) × 116.0(V)
    Outline Dim.(mm)222.7(H) × 135.4(V)Depth(mm)12.5 (Max.)
    Outline Features :Form StyleFlat RectangleOutline Shape
    Aspect Ratio15:9 (H:V)OrientationLandscape type
    Mounting :Face mounting holes (4 pcs) on left, right bezel
    Other Spec :Weight300g (Typ.)TreatmentAntiglare, Hard coating (3H)

    AUO G085VW01 V1 Optical Details

    Basic Information :Luminance(cd/m²)200 (Typ.)Contrast Ratio500:1 (Typ.) (Transmissive)
    Viewing Angle80/80/80/60 (Typ.)(CR≥10)Display ModeTN, Normally White, Transmissive
    Best View on-Response(ms)20/10 (Typ.)(Tr/Td)
    Color Performance :White CoordinateX:0.300; Y:0.320Display Colors262K (6-bit)
    Color Temperature7351KWhite Uniformity1.33/1.43 (Typ./Max.)(9 points)
    1931 Color Gamlt :NTSC Ratio52%sRGB71% coverage
    Adobe RGB54% coverageDCI-P354% coverage
    Rec.202039% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    AUO G085VW01 V1 Electronics Details

    Frame Rate :60Hz
    Reverse Scan :Yes (180°)
    Power Consumption :3.2W

    AUO G085VW01 V1 Interface Details

    Signal Electrical :Voltage Supply3.3V (Typ.)Current Supply135/150/200mA (Min./Typ./Max.)
    Consumption0.5W (Typ.)
    Signal Type :TTL (1 ch, 6-bit)Signal Voltage-
    Interface Features :Position-TypeConnector
    Interface Detail :BrandModelQuantityPinsPitchPin Configuration
    HRSFH12-40S-0.5SH(89)1 pcs40 pins0.5 mmDRGB-40P1C6B-070A

    AUO G085VW01 V1 Backlight Details

    Backlight Features:ShapeStraightTypeCCFLPositionEdge light type (Top side)
    Replacement-Quantity1 pcsLife Time50K(Typ.) (Hours)
    Lamp Electrical :Voltage Supply440V (Typ.)Current Supply4.0/5.0/6.5mA (Min./Typ./Max.)
    Frequency45KHz (Min.)Startup Voltage700/900V (Max.)(Ta=+25/0℃)
    Consumption2.7W (Typ.)
    Interface Features :Position-TypeConnector
    Interface Detail :BrandModelQuantityPinsPitchPin Configuration
    JSTBHSR-02VS-1(N)1 pcs2 pins3.5 mmBLL-2PINS-HL
    Backlight Driver :No

    FAQ:

    Q1: What's the quality of your LCD Panel?


    A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.


    Q2: What is your return and refund policy?


    A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.


    Q3: How long is the lead time?


    A: The lead time is about 1-3 working days after receipt of payment.


    Q4: How can I get the quotation?


    A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

    G085VW01 V1 AUO 8.5INCH 800×480RGB 200CD/M2 CCFL TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

    Product Tags:

    6 Bit TFT LCD Panel



    LVDS Industrial LCD Screen


    Quality G085VW01 V1 AUO 8.5INCH 800×480RGB 200CD/M2 CCFL TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY for sale

    G085VW01 V1 AUO 8.5INCH 800×480RGB 200CD/M2 CCFL TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY
