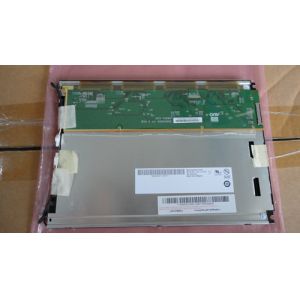

    Buy cheap G084SN03 V1 AUO 8.4INCH 800×600RGB 250CD/M2 CCFL LVDS Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY from wholesalers

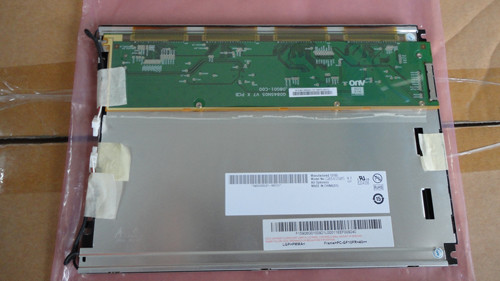

    • Buy cheap G084SN03 V1 AUO 8.4INCH 800×600RGB 250CD/M2 CCFL LVDS Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY from wholesalers

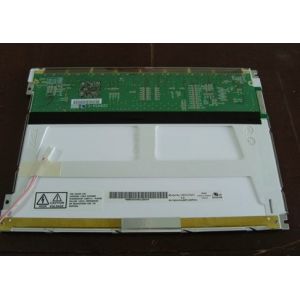

    • Buy cheap G084SN03 V1 AUO 8.4INCH 800×600RGB 250CD/M2 CCFL LVDS Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY from wholesalers
    • Buy cheap G084SN03 V1 AUO 8.4INCH 800×600RGB 250CD/M2 CCFL LVDS Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY from wholesalers

    G084SN03 V1 AUO 8.4INCH 800×600RGB 250CD/M2 CCFL LVDS Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : AUO
    Model Number : G084SN03 V1
    Certification : ISO9001
    Price :
    Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROW
    Supply Ability : 300PCS
    Delivery Time : 1-2 DAYS
    • Product Details
    • Company Profile

    G084SN03 V1 AUO 8.4INCH 800×600RGB 250CD/M2 CCFL LVDS Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

    AUO G084SN03 V1 Application Features

    Basic Information :BrandModelTypeModel Alias
    G084SN03 V1a-Si TFT-LCD , LCMG084SN03 V.1
    Reliability :RoHSOperating TemperatureStorage TemperatureVibration Resistance
    -30 ~ 85 °C-30 ~ 85 °C-

    AUO G084SN03 V1 Mechanical Features

    Panel Size :8.4 inch
    Pixel Features :ResolutionPixel ArrangementDot Pitch (W×H)Pixel Pitch (W×H)
    800(RGB)×600, SVGARGB Vertical Stripe0.071×0.213 mm0.213×0.213 mm [119PPI]
    Mechanical Size :Active Area (W×H)Bezel Area (W×H)Outline Dimension (W×H)Outline Depth
    170.4×127.8 mm173.8×131.2 mm203×142.5 mm6.0 (Max.) mm
    Outline Features :Form StyleAspect RatioOrientationShape Style
    Flat Rectangle4:3 (W : H)Landscape type
    Fixation :Face mounting holes (2-Φ3.0, 2-R1.5)
    Other Features :Panel CoverWeightSurface
    -200±10gAntiglare, Hard coating (3H)

    AUO G084SN03 V1 Optical Features

    Basic Information :BrightnessOperating ModeContrast Ratio
    250 cd/m² (Typ.)TN, Normally White, Transmissive600:1 (Typ.) (Transmissive)
    Viewing Angle(L/R/U/D)Viewing DirectionResponse Speed
    80/80/80/60 (Typ.)(CR≥10)12 o'clock20/10 (Typ.)(Tr/Td) (ms)
    Dispaly Color :Color TemperatureColor AmountWhite color Chromaticity
    6638K262K/16.2M (6-bit / 6-bit + FRC)X:0.310; Y:0.330
    1931 Color Gamlt :NTSC RatiosRGB CoverageAdobe RGB Coverage
    46%64%48%
    DCI-P3 CoverageRec.2020 CoverageRemarks
    48%34%sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
    Luminance Variation :1.43 (Max.)(9 points)

    AUO G084SN03 V1 Electronics Features

    Frame Rate :60Hz
    Reverse Scan :Yes (U/D, L/R)

    AUO G084SN03 V1 Interface Features

    Signal Electrical :Current InputVoltage InputConsumption
    300/330mA (Typ./Max.)3.3V (Typ.)1W (Typ.)
    Interface Features :PositionTypeInterface
    -ConnectorLVDS (1 ch, 6/8-bit)
    Signal Interface :BrandModelAmountPin PitchPinsPin Assignment
    STMMSB24013P201 pcs1.0 mm20 pinsLVDS-20P1C8B-140A

    AUO G084SN03 V1 Backlight Features

    Backlight Features:TypePositionShapeAmountLife(Hours)Replacement
    CCFLEdge light type (Bottom side)-1 pcs30K(Min.)Replaceable
    CCFL Electrical :Current InputVoltage InputConsumption
    3.0/4.6/7.0mA (Min./Typ./Max.)410/460/530V (Min./Typ./Max.)1.23/2.12/3.71W (Min./Typ./Max.)
    Turn-on VoltageLamp Frequency
    890/1150V (Max.)(Ta=+25/0℃)40/50/60KHz (Min./Typ./Max.)
    Interface Features :PositionTypeCCFL Driver
    -ConnectorNo
    Interface DetailBrandModelAmountPin PitchPinsPin Assignment
    JSTBHSR-02VS-11 pcs3.5 mm2 pinsBLL-2PINS-HL

    FAQ:


    Q1: What's the quality of your LCD Panel?


    A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.


    Q2: What is your return and refund policy?


    A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.


    Q3: How long is the lead time?


    A: The lead time is about 1-3 working days after receipt of payment.


    Q4: How can I get the quotation?


    A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
