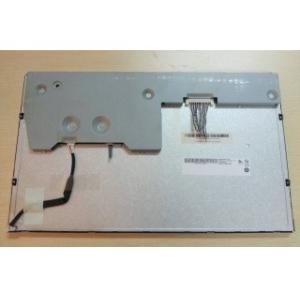

    Buy cheap 400Nits 1366×768RGB AUO Industrial LCD Screen 100PPI G156XW01 V101 from wholesalers

    Buy cheap 400Nits 1366×768RGB AUO Industrial LCD Screen 100PPI G156XW01 V101 from wholesalers
    • Buy cheap 400Nits 1366×768RGB AUO Industrial LCD Screen 100PPI G156XW01 V101 from wholesalers
    • Buy cheap 400Nits 1366×768RGB AUO Industrial LCD Screen 100PPI G156XW01 V101 from wholesalers
    • Buy cheap 400Nits 1366×768RGB AUO Industrial LCD Screen 100PPI G156XW01 V101 from wholesalers

    400Nits 1366×768RGB AUO Industrial LCD Screen 100PPI G156XW01 V101

    Ask Lasest Price
    Brand Name : AUO
    Model Number : G156XW01 V101
    Certification : ISO9001
    Price :
    Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROW
    Supply Ability : 500PCS
    Delivery Time : 1-2 DAYS
    • Product Details
    • Company Profile

    400Nits 1366×768RGB AUO Industrial LCD Screen 100PPI G156XW01 V101

    AUO G156XW01 V101 Application Features

    Basic Information :BrandModelTypeModel Alias
    G156XW01 V101a-Si TFT-LCD , LCMG156XW01 V.1(101)
    Reliability :RoHSOperating TemperatureStorage TemperatureVibration Resistance
    0 ~ 60 °C-20 ~ 60 °C-
    Designed For :

      AUO G156XW01 V101 Mechanical Features

      Panel Size :15.6 inch
      Pixel Features :ResolutionPixel ArrangementDot Pitch (W×H)Pixel Pitch (W×H)
      1366(RGB)×768, WXGARGB Vertical Stripe0.084×0.252 mm0.252×0.252 mm [100PPI]
      Mechanical Size :Active Area (W×H)Bezel Area (W×H)Outline Dimension (W×H)Outline Depth
      344.232×193.536 mm347.54×196.83 mm363.8×215.9 mm16.85±0.5 mm
      Outline Features :Form StyleAspect RatioOrientationShape Style
      Flat Rectangle16:9 (W : H)Landscape type
      Fixation :Side mounting holes (4-M3) on left, right bezel
      Other Features :Panel CoverWeightSurface
      -1.25/1.35Kgs (Typ./Max.)Antiglare, Hard coating (3H)

      AUO G156XW01 V101 Optical Features

      Basic Information :BrightnessOperating ModeContrast Ratio
      400 cd/m² (Typ.)TN, Normally White, Transmissive500:1 (Typ.) (Transmissive)
      Viewing Angle(L/R/U/D)Viewing DirectionResponse Speed
      85/85/80/80 (Typ.)(CR≥10)-6/2 (Typ.)(Tr/Td) (ms)
      Dispaly Color :Color TemperatureColor AmountWhite color Chromaticity
      6485K16.7M (6-bit + Hi-FRC)X:0.313; Y:0.329
      1931 Color Gamlt :NTSC RatiosRGB CoverageAdobe RGB Coverage
      71%92%71%
      DCI-P3 CoverageRec.2020 CoverageRemarks
      73%53%sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
      Luminance Variation :1.25/1.33 (Typ./Max.)(9 points)

      AUO G156XW01 V101 Electronics Features

      Power Consumption :12.65/14.5W (Typ./Max.)
      Frame Rate :60Hz
      Reverse Scan :No

      AUO G156XW01 V101 Interface Features

      Signal Electrical :Current InputVoltage InputConsumption
      0.43/0.50A (Typ./Max.)5.0V (Typ.)2.15/2.50W (Typ./Max.)
      Interface Features :PositionTypeInterface
      ConnectorLVDS (1 ch, 8-bit)
      Signal Interface :BrandModelAmountPin PitchPinsPin Assignment
      JAEFI-XB30SSL-HF151 pcs1.0 mm30 pinsLVDS-30P1C8B-170A

      AUO G156XW01 V101 Backlight Features

      Backlight Features:TypePositionShapeAmountLife(Hours)Replacement
      WLEDEdge light type (Bottom side)--50K(Min.)No
      Interface Features :PositionTypeWLED Driver
      -ConnectorWith LED Driver
      Interface DetailBrandModelAmountPin PitchPinsPin Assignment
      E&T3808K-F05N-02R1 pcs1.25 mm5 pins
      Driver Electrical :Current InputVoltage InputConsumption
      0.79A (Typ.)12.0±1.2V9.5/10.5W (Typ./Max.)

      FAQ:


      Q1: What's the quality of your LCD Panel?


      A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.


      Q2: What is your return and refund policy?


      A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.


      Q3: How long is the lead time?


      A: The lead time is about 1-3 working days after receipt of payment.


      Q4: How can I get the quotation?


      A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
