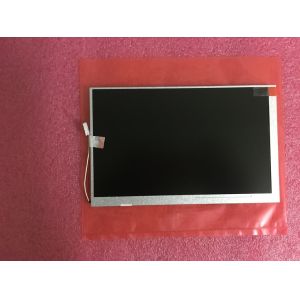

LW700AT9003 CHIHSIN 7.0" 800(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY

Product Categories

Sapientia Display Co.,LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

LW700AT9003 CHIHSIN 7.0" 800(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	CHIHSIN
Model Number :	LW700AT9003
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :	500PCS
Delivery Time :	1-2 DAYS

Add to Cart

Product Details
Company Profile

LW700AT9003 CHIHSIN 7.0" 800(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY

ChiHsin LW700AT9003 Application Details

Basic Detail :	Manufacturer		Model Name	LW700AT9003
	Panel Type	a-Si TFT-LCD , LCM	Another Name	-
	Panel Size	7.0 inch	Designed For
Maximum Ratings :	OP Temperature	-20 ~ 70 °C	ST Temperature	-30 ~ 80 °C
Maximum Ratings :	Vibration Level	-	RoHS

ChiHsin LW700AT9003 Optical Details

Basic Information :	Luminance	350 cd/m² (Typ.)	Contrast Ratio	400 : 1 (Typ.) (Transmissive)
	Good View at	6 o'clock	Response Speed	5/11 (Typ.)(Tr/Td) (ms)
	Viewing Angle	70/70/60/60 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	Wx:0.299; Wy:0.328	Support Color	262K (6-bit)
Color Performance :	Color Temperature	7291K	White Uniformity	-

ChiHsin LW700AT9003 Mechanical Details

Pixel Features :	Number of Pixel	800(RGB)×480 [WVGA]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.0635×0.1905 mm	Pixel Pitch(W×H)	0.1905×0.1905 mm [133PPI]
Physical Size :	Active Viewing	152.4(W)×91.44(H) mm	Overall Dim.	165(W)×104(H) mm
Physical Size :	Bezel Opening	155.3(W)×94.3(H) mm	Overall Depth	5.2/5.7 (Typ./Max.) mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio(W:H)	15:9	Shape Style
Fixation :	Without
Other Detail :	Mass	123g	Surface	Antiglare

ChiHsin LW700AT9003 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	No
Time Controller (T-CON) :	Embedded T-CON

ChiHsin LW700AT9003 Interface Details

Signal Electrical :	Input Current	150/200mA (Typ./Max.)(ICC)		Input Voltage	3.3V (Typ.)(VCC)
Signal Electrical :	Consumption	0.5W (Typ.)	Signal Interface	TTL (1 ch, 6-bit)
Logic Voltage for Signals :	0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Interface Features :	Position	-	Physical Type	FPC
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Signal Interface :			1 pcs		40 pins	DRGB-40P1C6B-010A

ChiHsin LW700AT9003 Lightting Details

Lamp Features:	Lamp Shape	Array	Lamp Type	WLED	Position	Edge light type
Lamp Features:	Exchange	-	Amount	3S8P	Life	10K(Min.) (Hours)
Lamp Electrical :	Input Current	160mA (Typ.)		Input Voltage	9.9V (Typ.)
Interface Features :	Position	-	Physical Type	Connector
Interface Detail :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Interface Detail :	JST	BHSR-02VS-1	1 pcs	3.5 mm	2 pins	BLE-2PINS-AC
Backlight Driver :	No
