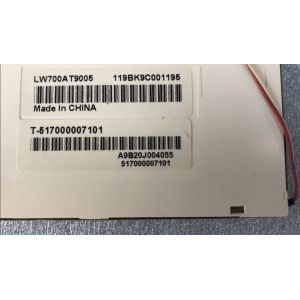

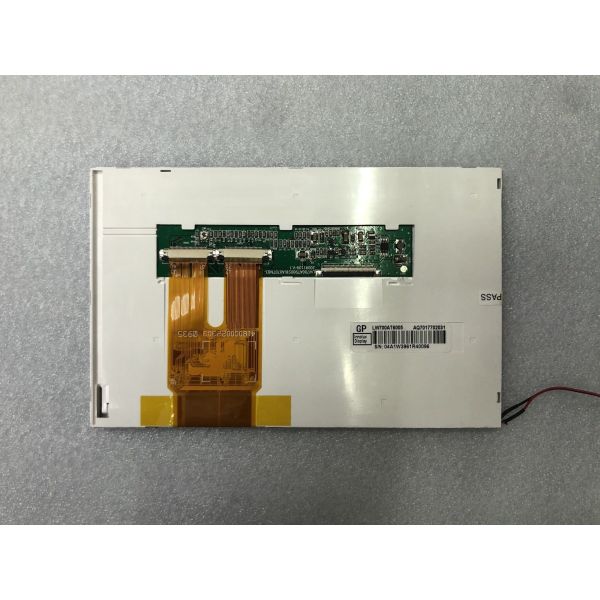

LW700AT9005 CHIHSIN 7.0" 800(RGB)×480 200 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	CHIHSIN
Model Number :	LW700AT9005
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :	100PCS
Delivery Time :	1-2 DAYS

Add to Cart

Product Details
Company Profile

LW700AT9005 CHIHSIN 7.0" 800(RGB)×480 200 cd/m² INDUSTRIAL LCD DISPLAY

ChiHsin LW700AT9005 Application Details

Basic Information :	Brand		Model	LW700AT9005 1 Compatible
	Type	LCM a-Si TFT-LCD	Used For
	Screen Size	7.0"	Alias	-
Environment :	Storage Temp.	-30 ~~ 80 °C	Operating Temp.	-20 ~~ 70 °C
Environment :	RoHS		Vibration	1.5G (14.7 m/s²)

ChiHsin LW700AT9005 Mechanical Details

Pixel Features :	Resolution	800(RGB)×480, WVGA	Dot Pitch(mm)	0.0635×0.1905 (H×V)
Pixel Features :	Pixel Format	RGB Vertical Stripe	Pixel Pitch(mm)	0.1905×0.1905 (H×V) [133PPI]
Mechanical Size :	Active Area(mm)	152.4(H) × 91.44(V)	Bezel Area(mm)	155.3(H) × 94.3(V)
Mechanical Size :	Outline Dim.(mm)	165(H) × 104(V)	Depth(mm)	5.2±0.3
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	15:9 (H:V)	Orientation	Landscape type
Mounting :	Without
Other Spec :	Weight	121g	Treatment	Antiglare

ChiHsin LW700AT9005 Optical Details

Basic Information :	Luminance(cd/m²)	200 (Typ.)	Contrast Ratio	400:1 (Typ.) (Transmissive)
	Viewing Angle	70/70/60/60 (Typ.)(CR≥10)	Display Mode	TN, Normally White, Transmissive
	Best View on	6 o'clock	Response(ms)	5/11 (Typ.)(Tr/Td)
Color Performance :	White Coordinate	X:0.310; Y:0.330	Display Colors	262K (6-bit)
Color Performance :	Color Temperature	6638K	White Uniformity

ChiHsin LW700AT9005 Electronics Details

Frame Rate :	60Hz
Reverse Scan :	No
Time Controller (T-CON) :	Embedded T-CON

ChiHsin LW700AT9005 Interface Details

Signal Electrical :	Voltage Supply	3.3/12/18/-7V (Typ.)(VCC/AVDD/VGH/VGL)		Current Supply	150/200mA (Typ./Max.)(ICC)
Signal Type :	TTL (1 ch, 6-bit)			Signal Voltage	0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Interface Features :	Position	-		Type	FPC
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail :			2 pcs	30 pins	0.5 mm

ChiHsin LW700AT9005 Backlight Details

Backlight Features:	Shape	Array	Type	WLED	Position	Edge light type
Backlight Features:	Replacement	-	Quantity	3S5P	Life Time	20K(Typ.) (Hours)
Lamp Electrical :	Voltage Supply	9.9V (Typ.)		Current Supply	100mA (Typ.)
Interface Features :	Position	-		Type	Connector
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail :	JST	BHSR-02VS-1	1 pcs	2 pins	3.5 mm	BLE-2PINS-AC
Backlight Driver :	No

ChiHsin LW700AT9005 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	40 pcs / box

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
