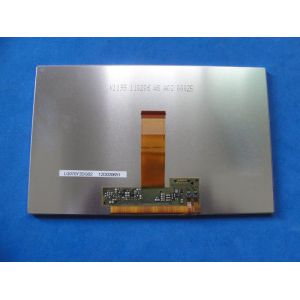

LQ070Y3DG02 Sharp 7" LCM 800×480RGB 280cd/m² INDUSTRIAL LCD DISPLAY

LQ070 Series LQ070Y3DG05 LQ070Y3DG03 LQ070Y3DG02 LQ070Y3DG01

Sharp LQ070Y3DG02 Mechanical Features

Screen Size :	7.0"
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	800×480(RGB), WVGA	RGB Horizontal Stripe	0.1905×0.0635 mm	0.1905×0.1905 mm [133PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	152.4×91.44 mm	-	164.9×104 mm	5.0/5.3 (Typ./Max.) mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	15:9	Landscape type
Touch Panel :	Touch Points	Signal Type	Controller	Technology
Touch Panel :	-	-	Without touch controller	4-wire Resistive Touch
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	160/175g (Typ./Max.)	-	Antiglare, Hard coating (3H)
Holes & Brackets :	Without

Sharp LQ070Y3DG02 Optical Features

Basic Information :	Luminance	Work Mode	Contrast Ratio
	280 cd/m² (Typ.)	TN, Normally White, Transmissive	450:1 (Typ.) (Transmissive)
	Good View at	Viewing Angle	Response Time
	6 o'clock	65/65/50/60 (Typ.)(CR≥10)	35 (Typ.)(Tr+Td) (ms)
Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
Dispaly Color :	6485K	16.7M (8-bit)	X:0.313; Y:0.329
White Uniformity :	1.10/1.30 (Typ./Max.)(5 points)

Sharp LQ070Y3DG02 Electronics Features

Refresh Rate :	60Hz
Reverse Scan :	No

Sharp LQ070Y3DG02 Backlight Features

Back-light Features:	Type	Position	Life(Hours)	Amount	Shape	Replacement
Back-light Features:	WLED	Edge light type	10K(Min.)	8S3P	3 strings	-
WLED Electrical :	Input Voltage		Input Current			Power Consumption
WLED Electrical :	25.6/28.0V (Typ./Max.)		20mA (Typ.)			1.54W (Typ.)
Interface Features :	WLED Driver State			Physical Type		Interface Position
Interface Features :	No			Included in panel signal interface		-

Sharp LQ070Y3DG02 Interface Features

Signal Electrical :	Input Voltage		Input Current			Power Consumption
Signal Electrical :	1.8/2.85V (Typ.)(VDDIO/VCI)		10/45mA (Typ.)(IDDIO/IVCI)			-
Voltage for Display Signals :	0≤VIL≤0.3VDDIO; 0.7VDDIO≤VIH≤VDDIO
Interface Features :	Signal Type			Physical Type		Interface Position
Interface Features :	Parallel RGB (1 ch, 8-bit)			FPC		-
Interface Detail :	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail :			1 pcs	51 pins	0.3 mm

LQ070Y3DG02 supports display 800×480(RGB) (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Horizontal Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 164.9(W)×104(H)×5.3(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 160/175g (Typ./Max.). As a TN, Normally White, Transmissive LCM product, LQ070Y3DG02 can provides 280 cd/m² display brightness 450:1 transimissive contrast ratio, 65/65/50/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 48% (NTSC). This product adopted 8S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed.
