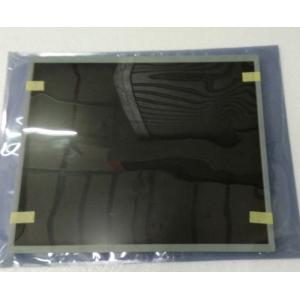

M170E5-L0C CMO 17.0" 1280(RGB)×1024 300 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	CMO
Model Number :	M170E5-L0C
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :	100PCS
Delivery Time :	1-2 DAYS

Add to Cart

Product Details
Company Profile

M170E5-L0C CMO 17.0" 1280(RGB)×1024 300 cd/m² INDUSTRIAL LCD DISPLAY

CMO M170E5-L0C Application Details

Basic Information :	Brand		Model	M170E5-L0C
	Type	LCM a-Si TFT-LCD	Used For
	Screen Size	17.0"	Alias	-
Environment :	Storage Temp.	-20 ~~ 60 °C	Operating Temp.	0 ~~ 50 °C
Environment :	RoHS		Vibration	-
Typical Features :
Remarks :	PSWG Compatible, TCO'03 compliance, High color saturation

CMO M170E5-L0C Mechanical Details

Pixel Features :	Resolution	1280(RGB)×1024, SXGA	Dot Pitch(mm)	0.088×0.264 (H×V)
Pixel Features :	Pixel Format	RGB Vertical Stripe	Pixel Pitch(mm)	0.264×0.264 (H×V) [96PPI]
Mechanical Size :	Active Area(mm)	337.92(H) × 270.336(V)	Bezel Area(mm)	341.9(H) × 274.4(V)
Mechanical Size :	Outline Dim.(mm)	358.5(H) × 296.5(V)	Depth(mm)	17.0±0.5
Outline Features :	Form Style	Flat Rectangle	Outline Shape	Normal bezel
Outline Features :	Aspect Ratio	5:4 (H:V)	Orientation	Landscape type
Mounting :	Side mounting holes (4-M3) on left, right bezel
Other Spec :	Weight	1.90/1.98Kgs (Typ./Max.)	Treatment	Antiglare (Haze 25%), Hard coating (3H)

CMO M170E5-L0C Optical Details

Basic Information :	Luminance(cd/m²)	300 (Typ.)	Contrast Ratio	800:1 (Typ.) (Transmissive)
	Viewing Angle	85/85/80/80 (Typ.)(CR≥10)	Display Mode	TN, Normally White, Transmissive
	Best View on	6 o'clock	Response(ms)	1/4 (Typ.)(Tr/Td)
Color Performance :	White Coordinate	X:0.313; Y:0.329	Display Colors	16.7M (8-bit)
Color Performance :	Color Temperature	6485K	White Uniformity	1.30/1.45 (Typ./Max.)(13 points)
1931 Color Gamlt :	NTSC Ratio	74%	sRGB	98% coverage
	Adobe RGB	77% coverage	DCI-P3	77% coverage
	Rec.2020	55% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

CMO M170E5-L0C Electronics Details

Frame Rate :	60Hz
Reverse Scan :	No

CMO M170E5-L0C Interface Details

Signal Electrical :	Voltage Supply	5.0V (Typ.)		Current Supply	0.8/1.1A (Typ./Max.)
Signal Type :	LVDS (2 ch, 8-bit)			Signal Voltage	-
Interface Features :	Position	-		Type	Connector
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail :	STARCONN	093G30-B0001A	1 pcs	30 pins	1.0 mm	LVDS-30P2C8B-160A

CMO M170E5-L0C Backlight Details

Backlight Features:	Shape	Straight	Type	CCFL	Position	Edge light type (Top and Bottom)
Backlight Features:	Replacement	-	Quantity	4 pcs	Life Time	50K(Min.) (Hours)
Lamp Electrical :	Voltage Supply	640±64V		Current Supply	2.0/7.0/7.5mA (Min./Typ./Max.)
	Frequency	40/80KHz (Min./Max.)		Startup Voltage	1250/1470V (Max.)(Ta=+25/0℃)
	Consumption	17.92W (Typ.)
Interface Features :	Position	-		Type	Connector
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail :	JST	BHSR-02VS-1	4 pcs	2 pins	3.5 mm	BLL-2PINS-HL
Backlight Driver :	No

CMO M170E5-L0C Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	5 pcs / box	10.5 Kgs	470×268×430 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
