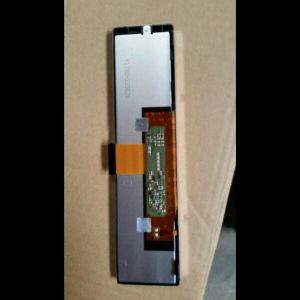

LQ060B3DW02 Sharp 6" LCM 768×128RGB 240cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	Sharp
Model Number :	LQ060B3DW02
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :	500PCS
Delivery Time :	1-2DAYS

Add to Cart

Product Details
Company Profile

LQ060B3DW02 Sharp 6" LCM 768×128RGB 240cd/m² INDUSTRIAL LCD DISPLAY

LQ060 Series LQ060B3DW02 LQ060B3DW01

Sharp LQ060B3DW02 Mechanical Details

Pixel Features :	Resolution	768×128(RGB)	Dot Pitch(mm)	0.195×0.065 (H×V)
Pixel Features :	Pixel Format	RGB Horizontal Stripe	Pixel Pitch(mm)	0.195×0.195 (H×V) [130PPI]
Mechanical Size :	Active Area(mm)	149.76(H) × 24.96(V)	Bezel Area(mm)	153.94(H) × 28.36(V)
Mechanical Size :	Outline Dim.(mm)	173.8(H) × 42.1(V)	Depth(mm)	7.6 (Typ.)
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	>3:1 (H:V)	Orientation	Landscape type
Other Spec :	Weight	76.0g	Treatment	Antiglare, Hard coating (3H)

Sharp LQ060B3DW02 Optical Details

Basic Information :	Luminance(cd/m²)	240 (Typ.)	Contrast Ratio	700:1 (Typ.) (Transmissive)
	Viewing Angle	80/80/80/80 (Typ.)(CR≥10)	Display Mode	ASV, Normally Black, Transmissive
	Best View on	Symmetry	Response(ms)	5/10 (Typ.)(Tr/Td)
Color Performance :	White Coordinate	X:0.313; Y:0.329	Display Colors	262K (6-bit)
Color Performance :	Color Temperature	6485K	White Uniformity	-

Sharp LQ060B3DW02 Interface Details

Signal Electrical :	Voltage Supply	3.3V (Typ.)		Current Supply	45/70mA (Typ.)
Signal Electrical :	Consumption	148.5mW (Typ.)
Signal Type :	Parallel RGB (1 ch, 6-bit) + SPI			Signal Voltage	-
Interface Features :	Position	-		Type	FPC
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail :			1 pcs	40 pins	0.5 mm

Sharp LQ060B3DW02 Backlight Details

Backlight Features:	Shape	1 string	Type	WLED	Position	Edge light type
Backlight Features:	Replacement	No	Quantity	4S1P	Life Time	50K(Typ.) (Hours)
Lamp Electrical :	Voltage Supply	12.8/14.4V (Typ./Max.)		Current Supply	60/80mA (Typ./Max.)
Lamp Electrical :	Consumption	768mW (Typ.)
Interface Features :	Position	-		Type	Included in panel signal interface
Backlight Driver :	No

LQ060B3DW02 supports display 768×128(RGB) with aspect ratio of >3:1 (W:H), whose pixels are arranged in RGB Horizontal Stripe. As for mechanical detail, it features active area of 149.76(W)×24.96(H) mm, outline size of 173.8(W)×42.1(H) mm, viewing area size of 153.94(W)×28.36(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 76.0g. As a ASV, Normally Black, Transmissive LCM product, LQ060B3DW02 can provides 240 cd/m² display brightness 700:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 5/10 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 4S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed.

LQ060B3DW02 Sharp 6" LCM 768×128RGB 240cd/m² INDUSTRIAL LCD DISPLAY
