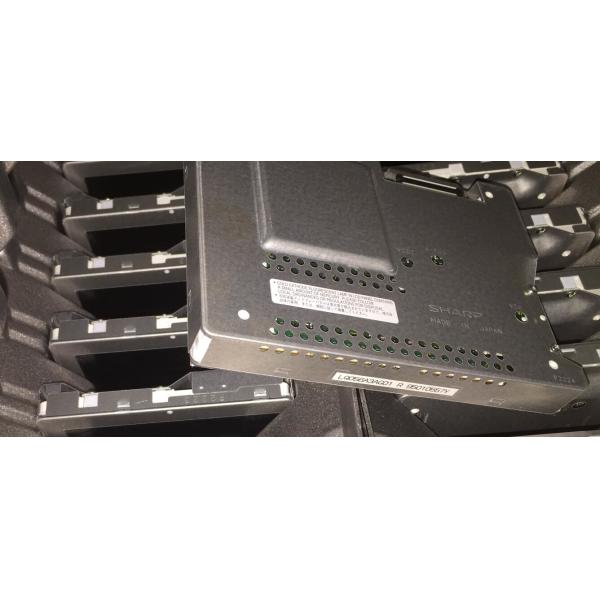

LQ056A3AG01 Sharp 5.6INCH LCM 320×234RGB 250cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	Sharp
Model Number :	LQ056A3AG01
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :	500PCS
Delivery Time :	1-2DAYS

Add to Cart

Product Details
Company Profile

LQ056A3AG01 Sharp 5.6INCH LCM 320×234RGB 250cd/m² INDUSTRIAL LCD DISPLAY

LQ056 Series LQ056A5GG01 LQ056A3AG01R LQ056A3AG01

Sharp LQ056A3AG01 Optical Features

Basic Information :	Luminance (cd/m²)	Viewing Angle (L/R/U/D)	Response Time (ms)
	250 (Typ.)	65/65/40/65 (Typ.)(CR≥5)	15/20 (Typ.)(Tr/Td)
	Best View on	Display Mode	Contrast Ratio
	6 o'clock	TN, Normally White, Transmissive	60 : 1 (Min.) (Transmissive)
Dispaly Color :	Color Temperature	Display Colors	White Coordinate
Dispaly Color :	6485K	Full color	X:0.313; Y:0.329

Sharp LQ056A3AG01 Mechanical Features

Panel Size :	5.6"
Pixel Features :	Pixel Format	Pixel Configuration	Pixel Pitch (mm)	Dot Pitch (mm)
Pixel Features :	320(RGB)×234	RGB Vertical Stripe	0.357×0.357 [71PPI]	0.119×0.357
Mechanical Size :	Active Area (mm)	Bezel Area (mm)	Outline Dimension (mm)	Outline Depth (mm)
Mechanical Size :	114.2(H) × 83.5(V)	120.0(H) × 89.4(V)	140(H) × 102.7(V)	20.0 (Typ.) mm
Outline Features :	Form Factor	Orientation	Aspect Ratio	Shape Style
Outline Features :	Flat Rectangle	Landscape type	4:3 (H:V)
Mounting :	Rear mounting holes (4-Φ2.2)
Other Detail :	Weight	Panel Cover	Treatment
Other Detail :	250±20g	-	-

Sharp LQ056A3AG01 Backlight Features

Lamp Features:	Type	Position	Quantity	Shape	Life(Hours)	Lamp Exchange
Lamp Features:	CCFL	Edge light type	1 pcs	-	25K(Typ.)	Replaceable
Driver Electrical :	Voltage Supply		Current Supply			Power Consumption
Driver Electrical :	12.0V (Typ.)		380/470mA (Typ./Max.)			-

Sharp LQ056A3AG01 Interface Features

Panel Driving Electrical :	Voltage Supply		Current Supply			Power
Panel Driving Electrical :	12.0V (Typ.)		98/130mA (Typ./Max.)			-
Interface Features :	Position	Signal				Type
Interface Features :	-	Analog RGB + Composite Video (NTSC/PAL)				Connector
Connector Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
Connector Detail :	IRISO	IMSA-9619S-24B-GF	1.0 mm	24 pins	1 pcs

FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
