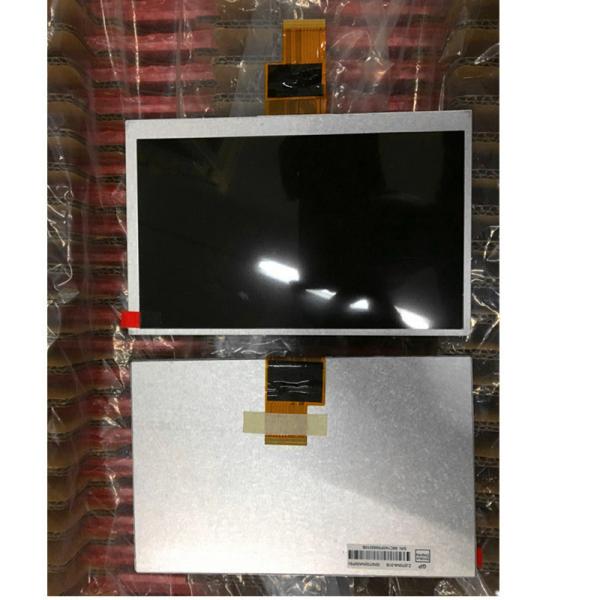

AT070TNA2 CHIMEI Innolux 7.0" 1024(RGB)×600 250 cd/m² INDUSTRIAL LCD DISPLAY

Chimei Innolux AT070TNA2 Application Details

Basic Info :	Panel Brand		Panel Model	AT070TNA2 1 Compatible
	Diagonal Size	7.0"	Application
	Panel Type	a-Si TFT-LCD , LCM	Model Alias	-
Reliability :	Operating Temp.	-20 ~ 60 °C	Storage Temp.	-30 ~ 70 °C
Reliability :	RoHS State		Vibration Rating	-

Chimei Innolux AT070TNA2 Mechanical Details

Pixel Features :	Pixel Format	1024(RGB)×600 [WSVGA]	Dot Pitch	0.050×0.150 mm (H×V)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.150×0.150 mm (H×V) [169PPI]
Mechanical Size :	Display Area	153.6×90 mm (H×V)	Bezel Area	156.2×92.6 mm (H×V)
Mechanical Size :	Outline Dim.	165.75×105.39 mm (H×V)	Outline Depth	3.4±0.3 mm
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio	17:10 (H:V)	Shape Style
Holes & Brackets :	Without
Other Features :	Weight	127g (Typ.)	Surface	Antiglare

Chimei Innolux AT070TNA2 Optical Details

Basic Information :	Brightness	250 cd/m² (Typ.)	Contrast Ratio	700:1 (Typ.) (Transmissive)
	Viewing Angle	75/75/70/75 (Typ.)(CR≥10)	Optical Mode	TN, Normally White, Transmissive
	Viewing Direction	6 o'clock	Response Time	10/10 (Typ.)(Tr/Td) (ms)
Color Performance :	Chromaticity	Wx:0.310; Wy:0.330	Color Numbers	262K/16.7M (6-bit / 6-bit + Dithering)
Color Performance :	Color Temperature	6638K	White Uniformity	1.33/1.43 (Typ./Max.)(9 points)

Chimei Innolux AT070TNA2 Electronics Details

Frame Frequency :	60Hz
Reverse Scan :	No
Power Consumption :	1.65W (Typ.)

Chimei Innolux AT070TNA2 Backlight Details

Back-light Features:	Lamp Shape	Array	Lamp Type	WLED	Life Time	20K(Typ.) (Hours)
Back-light Features:	Replacement	-	Amount	3S6P	Position	Edge light type
Lamp Electrical :	Voltage Input	9.3/10.2V (Typ./Max.)		Current Input	120/130mA (Typ./Max.)
Lamp Electrical :	Consumption	1.20W (Typ.)
Interface Features :	Type	Included in panel signal interface	Position	-	Lamp Driver	No

Chimei Innolux AT070TNA2 Interface Details

Signal Systerm :	LVDS (1 ch, 6/8-bit)			Logic Voltage	0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
Signal Electrical :	Voltage Input	3.3/11/20/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL)		Current Input	50/25/0.2/0.2mA (Typ.)(DIDD/AIDD/IGH/IGL)
Signal Electrical :	Consumption	450mW (Typ.)
Interface Features :	Type	Connector	Position	-
Connector Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Connector Detail :	I-PEX	20455-040E-02	0.5 mm	40 pins	1 pcs	LVDS-40P1C8B-010A
