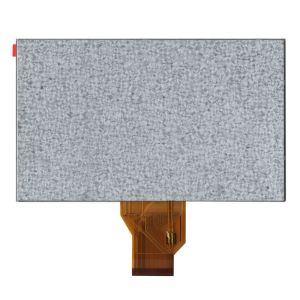

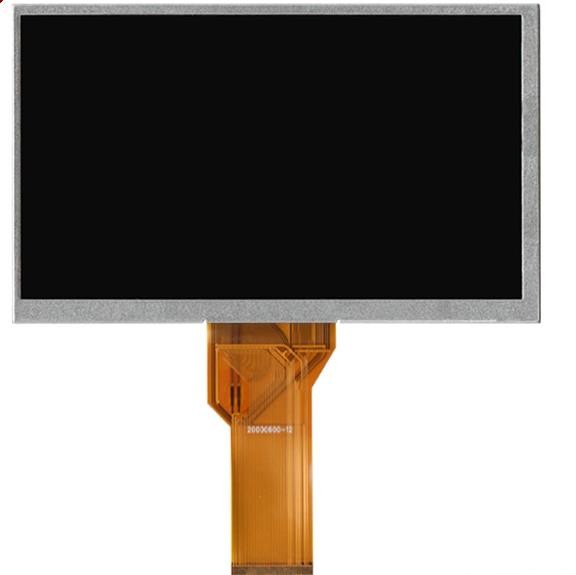

AT070TN92 Innolux 7.0" 800(RGB)×480 250 cd/m² INDUSTRIAL LCD DISPLAY

Product Categories

Sapientia Display Co.,LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

AT070TN92 Innolux 7.0" 800(RGB)×480 250 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	INNOLUX
Model Number :	AT070TN92
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :	5000PCS
Delivery Time :	1-2 DAYS

Add to Cart

Product Details
Company Profile

AT070TN92 Innolux 7.0" 800(RGB)×480 250 cd/m² INDUSTRIAL LCD DISPLAY

Innolux AT070TN92 Application Details

Basic Info :	Panel Brand AT070TN92 1 CompatiblePanel Model Diagonal Size 7.0" Application Panel Type a-Si TFT-LCD , LCM Model Alias -
Reliability :	Operating Temp. -20 ~ 70 °C Storage Temp. -30 ~ 80 °C RoHS State -Vibration Rating
Specific Features :
Remarks :	DE/SYNC mode selectable, 2 in 1 FPC

Innolux AT070TN92 Mechanical Details

Pixel Features :	Pixel Format 800(RGB)×480, WVGA Dot Pitch 0.0642×0.1790 mm (H×V) Configuration RGB Vertical Stripe Pixel Pitch 0.1926×0.1790 mm (H×V) [134PPI]
Mechanical Size :	Display Area 154.08×85.92 mm (H×V) Bezel Area 156.7×89.1 mm (H×V) Outline Dim. 164.9×100 mm (H×V) Outline Depth 5.7±0.3 mm
Outline Features :	Form Factor Flat Rectangle Orientation Landscape type Aspect Ratio 16:9 (H:V) Shape Style
Holes & Brackets :	Without
Other Features :	Weight 150g (Typ.) Surface Antiglare

Innolux AT070TN92 Optical Details

Basic Information :	Brightness 250 cd/m² (Typ.) Contrast Ratio 500:1 (Typ.) (Transmissive) Viewing Angle 70/70/50/70 (Typ.)(CR≥10) Optical Mode TN, Normally White, Transmissive Viewing Direction 6 o'clock Response Time 10/15 (Typ.)(Tr/Td) ms
Color Performance :	Chromaticity Wx:0.310; Wy:0.330 Color Numbers 262K/16.7M (6-bit / 6-bit + Dithering) Color Temperature 6638K Uniformity 1.33/1.43 (Typ./Max.)(9 points)

Innolux AT070TN92 Electronics Details

Frame Frequency :	60Hz
Reverse Scan :	Yes (U/D, L/R)
Power Consumption :	1.90W (Typ.)
Time Controller (T-CON) :	Embedded T-CON

Innolux AT070TN92 Backlight Details

Back-light Features :	Lamp Type WLED Amount 3S9P Life Time 20K(Min.) (Hours) Replacement - Lamp Shape Array Position Edge light type
Lamp Electrical :	Voltage Input 9.3±0.6V Current Input 170/180/200mA (Min./Typ./Max.) Consumption 1.674W (Typ.)
Interface Features :	Type Included in panel signal interface Position - Lamp Driver No

Innolux AT070TN92 Interface Detail

Signal Systerm :	Parallel RGB (1 ch, 6/8-bit) Logic Voltage 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Signal Electrical :	Voltage Input 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) Current Input 4.0/20.0/0.2/0.2mA (Typ.)(ICC/IAVDD/IGH/IGL) Consumption 226mW (Typ.)
Interface Features :	Type FPC Position -
FPC Detail :	Brand Model Pin Pitch Pins Amount Configuration 0.5 mm 50 pins 1 pcs DRGB-50P1C8B-115A
