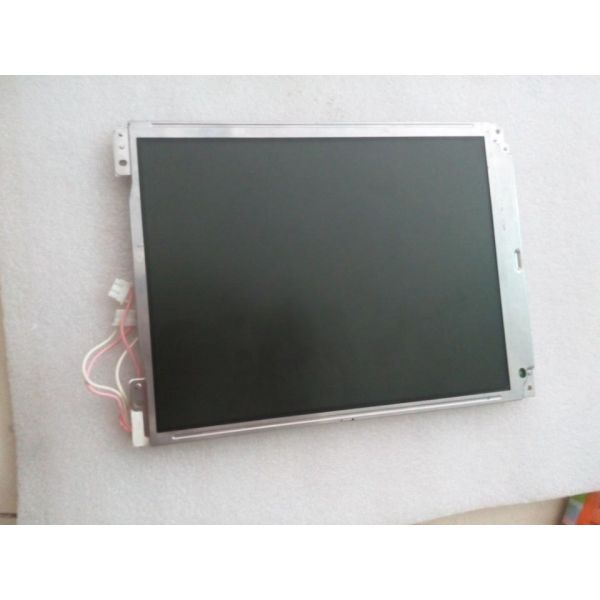

    DMF-50961NF-FW-AEN Kyocera 7.2INCH LCM 640×480RGB 90NITS CCFL INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : Kyocera
    Model Number : DMF-50961NF-FW-AEN
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW
    Supply Ability : 50PCS
    Delivery Time : 1-2day
    • Product Details
    • Company Profile

    DMF-50961NF-FW-AEN Kyocera 7.2INCH LCM 640×480RGB 90NITS CCFL INDUSTRIAL LCD DISPLAY

    OPTREX DMF-50961NF-FW-AEN Application Features

    Basic Information :Brand NameModel NameTypeModel Alias
    DMF-50961NF-FW-AENFSTN-LCD , LCM-
    Maximum Ratings :RoHSOperating TemperatureStorage TemperatureVibration Level
    0 ~ 50 °C-20 ~ 60 °C

    OPTREX DMF-50961NF-FW-AEN Mechanical Features

    Screen Size :7.2"
    Pixel Features :Pixel NumberPixel FormatDot Pitch (H×V)Pixel Pitch (H×V)
    640×480, VGARectangle0.23×0.23 mm0.23×0.23 mm [110PPI]
    Mechanical Size :Display Area (H×V)Bezel Opening (H×V)Overall Dimension (H×V)Overall Depth
    147.18×110.38 mm153.0×115.4 mm205.5×141 mm6.5 (Max.) mm
    Outline Features :Form ShapeAspect Ratio (H:V)OrientationShape Style
    Flat Rectangle4:3Landscape type
    Other Spec :MassPanel CoverSurface Treatment
    230g (Max.)--
    Holes & Brackets :Face mounting holes (4 pcs)

    OPTREX DMF-50961NF-FW-AEN Optical Features

    Basic Information :LuminanceWork ModeContrast Ratio
    90 cd/m² (Typ.)STN, Black/White mode, Transmissive12:1 (Typ.) (Transmissive)
    Good View atViewing AngleResponse Time
    6 o'clock-270/140 (Typ.)(Tr/Td) (ms)
    Dispaly Color :Color Temperature:Support ColorColor Coordinate
    -Monochrome

    OPTREX DMF-50961NF-FW-AEN Electronics Features

    Refresh Rate :70Hz

    OPTREX DMF-50961NF-FW-AEN Backlight Features

    Back-light Features:TypePositionLife(Hours)AmountShapeReplacement
    CCFLEdge light type10K(Min.)1 pcsStraight-
    CCFL Electrical :Input VoltageInput CurrentPower Consumption
    315V (Typ.)5.0±0.5mA
    Operating FrequencyStartup Voltage
    420V (Min.)
    Interface Features :CCFL Driver StatePhysical TypeInterface Position
    NoConnector-
    Interface DetailBrand NameModel NameAmountPinsPin PitchPin Configuration
    MITSUMIM63M83-041 pcs4 pins2.5 mmBLL-4PINS-LNNH

      OPTREX DMF-50961NF-FW-AEN Interface Features

      Signal Electrical :Input VoltageInput CurrentPower Consumption
      5.0V (Typ.)1.7/6.0mA (Typ./Max.)-
      Interface Features :Signal TypePhysical TypeInterface Position
      Parallel Data (4-bit)Connector-
      Interface Detail :Brand NameModel NameAmountPinsPin PitchPin Configuration
      molex53261-15901 pcs15 pins1.25 mm
