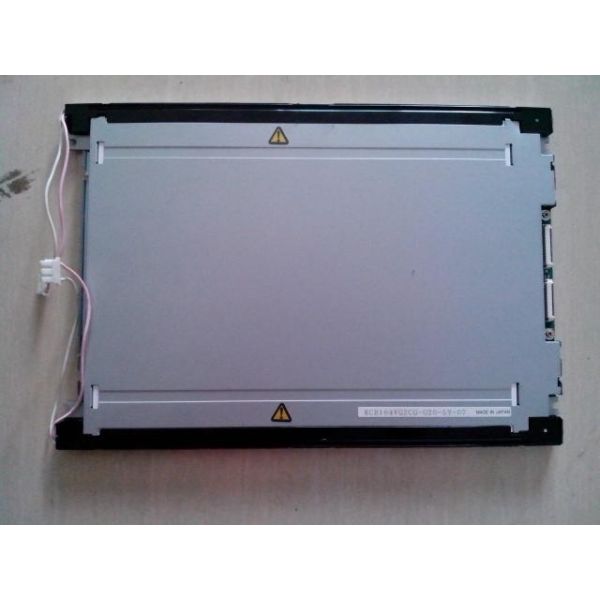

    KCB104VG2CA-A44 Kyocera 10.4INCH LCM 640×480RGB 150NITS CCFL INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : Kyocera
    Model Number : KCB104VG2CA-A44
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW
    Supply Ability : 100PCS
    Delivery Time : 1-2day
    • Product Details
    • Company Profile

    KCB104VG2CA-A44 Kyocera 10.4INCH LCM 640×480RGB 150NITS CCFL INDUSTRIAL LCD DISPLAY

    Kyocera KCB104VG2CA-A44 Application Details

    Basic Information :
    Brand

    KCB104VG2CA-A44Model
    Type
    CSTN-LCD , LCM
    Used For

    10.4 inchScreen Size
    Alias
    -
    Environment :
    Storage Temp.
    -20 ~ 60 °C
    Operating Temp.
    0 ~ 50 °C
    RoHS
    Vibratio

    n

    Kyocera KCB104VG2CA-A44 Mechanical Details

    Pixel Features :
    Resolution
    640(RGB)×480, VGA
    Dot Pitch(mm)
    0.110×0.330 (H×V)
    Pixel Format
    RGB Vertical Stripe
    Pixel Pitch(mm)
    0.330×0.330 (H×V) [76PPI]
    Mechanical Size :
    Active Area(mm)
    211.2(H) × 158.4(V)
    Bezel Area(mm)
    217.2(H) × 164.4(V)
    Outline Dim.(mm)
    264(H) × 183(V)
    Depth(mm)
    8.5±0.5
    Outline Features :
    Form Style
    Flat Rectangle
    Shape Style
    Aspect Ratio
    4:3 (H:V)
    Orientation
    Landscape type
    Mounting :
    Face mounting holes (4-R1.7)
    Other Spec :
    Weight
    540g (Typ.)
    Treatment
    Antiglare

    Kyocera KCB104VG2CA-A44 Optical Details

    Basic Information :
    Luminance(cd/m²)
    150 (Typ.)
    Contrast Ratio
    30:1 (Typ.) (Transmissive)
    Viewing Angle
    45/45/35/20 (Typ.)(CR≥2)
    Display Mode
    STN, Normally Black, Transmissive
    Best View on
    -
    Response(ms)
    16/80 (Typ.)(Tr/Td)
    Color Performance :
    White Coordinate
    Wx:0.310; Wy:0.330
    Display Colors
    Color
    Color Temperature
    6638K
    White Uniformity
    -
    1931 Color Gamlt :
    NTSC Ratio
    36%
    sRGB
    50% coverage
    Adobe RGB
    38% coverage
    DCI-P3
    37% coverage
    Rec.2020
    27% coverage
    Remarks
    sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    Kyocera KCB104VG2CA-A44 Electronics Details

    Frame Rate :
    75Hz
    Reverse Scan :
    No
    Driving Method :
    Duty: 1/240

    Kyocera KCB104VG2CA-A44 Interface Detail

    Signal Electrical :
    Voltage Supply
    3.3/5.0V (Typ.)(VDD)
    Current Supply
    71/51mA (Typ.)(3.3V/5.0V)(IDD)
    Signal Type :
    Parallel Data (8-bit)
    Logic Voltage
    -
    Interface Features :
    Position
    -
    Type
    Connector
    Interface Detail :
    Brand
    Model
    Pitch
    Pins
    Quantity
    Pin Configuration
    molex
    53261-1510
    1.25 mm
    15 pins
    1 pcs
    PD-29P1C8B-010A
    molex
    53261-1410
    1.25 mm
    14 pins
    1 pcs

      Kyocera KCB104VG2CA-A44 Backlight Details

      Backlight Features :
      Type
      CCFL
      Quantity
      2 pcs
      Position
      Edge light type (Top and Bottom)
      Replacement
      -
      Shape
      Straight
      Life Time
      60K(Typ.) (Hours)
      Lamp Electrical :
      Voltage Supply
      520V (Typ.)
      Current Supply
      2.0/4.5/6.0mA (Min./Typ./Max.)
      Frequency
      40/100KHz (Min./Max.)
      Startup Voltage
      845/1270V Max.)(Ta=+25/0℃)
      Interface Features :
      Position
      -
      Type
      Connector
      Interface Detail :
      Brand
      Model
      Pitch
      Pins
      Quantity
      Pin Configuration
      HONDA
      QZ-19-3F01
      3 pins
      2 pcs
      BLL-3PINS-LNH
      Backlight Driver :
      Optional

      FAQ:
      Q1: What's the quality of your LCD Panel?
      A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
      Q2: What is your return and refund policy?
      A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance      .
      Q3: How long is the lead time?
      A: The lead time is about 1-3 working days after receipt of payment.
      Q4: How can I get the quotation?
      A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
