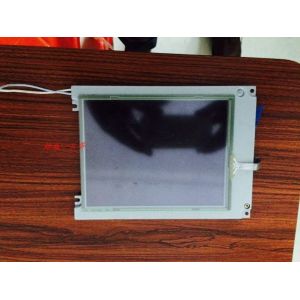

    Buy cheap CS057QV1AD-G23 Kyocera 5.7INCH LCM 320×240RGB 160NITS CCFL INDUSTRIAL LCD DISPLAY from wholesalers

    Buy cheap CS057QV1AD-G23 Kyocera 5.7INCH LCM 320×240RGB 160NITS CCFL INDUSTRIAL LCD DISPLAY from wholesalers
    • Buy cheap CS057QV1AD-G23 Kyocera 5.7INCH LCM 320×240RGB 160NITS CCFL INDUSTRIAL LCD DISPLAY from wholesalers
    • Buy cheap CS057QV1AD-G23 Kyocera 5.7INCH LCM 320×240RGB 160NITS CCFL INDUSTRIAL LCD DISPLAY from wholesalers
    • Buy cheap CS057QV1AD-G23 Kyocera 5.7INCH LCM 320×240RGB 160NITS CCFL INDUSTRIAL LCD DISPLAY from wholesalers

    CS057QV1AD-G23 Kyocera 5.7INCH LCM 320×240RGB 160NITS CCFL INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : Kyocera
    Model Number : CS057QV1AD-G23
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW
    Supply Ability : 50PCS
    Delivery Time : 1-2day
    • Product Details
    • Company Profile

    CS057QV1AD-G23 Kyocera 5.7INCH LCM 320×240RGB 160NITS CCFL INDUSTRIAL LCD DISPLAY

    Kyocera KCS057QV1AD-G23 Application Details

    Basic Detail :ManufacturerModel NameKCS057QV1AD-G23
    Panel TypeCSTN-LCD , LCMAnother Name-
    Panel Size5.7 inchDesigned For
    Maximum Ratings :OP Temperature0 ~ 50 °CST Temperature-20 ~ 60 °C
    Vibration Level-RoHS

    Kyocera KCS057QV1AD-G23 Optical Details

    Basic Information :Luminance160 cd/m² (Typ.)Contrast Ratio40 : 1 (Typ.) (Transmissive)
    Good View at-Response Speed220/110 (Typ.)(Tr/Td) (ms)
    Viewing Angle50/50/30/30 (Typ.)(CR≥2)Operating ModeSTN, Normally Black, Transmissive
    Color Performance :ChromaticityWx:0.320; Wy:0.350Support ColorColor
    Color Temperature6022KWhite Uniformity-
    1931 Color Gamlt :NTSC Ratio35%sRGB48% coverage
    Adobe RGB36% coverageDCI-P336% coverage
    Rec.202026% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    Kyocera KCS057QV1AD-G23 Mechanical Details

    Pixel Features :Number of Pixel320(RGB)×240 [QVGA]ArrangementRGB Vertical Stripe
    Dot Pitch(W×H)0.120×0.360 mmPixel Pitch(W×H)0.360×0.360 mm [70PPI]
    Physical Size :Active Viewing115.2(W)×86.4(H) mmOverall Dim.154.6(W)×114.8(H) mm
    Bezel Opening120.2(W)×91.4(H) mmOverall Depth10.3±0.5 mm
    Outline Features :Form ShapeFlat RectangleOrientationLandscape type
    Aspect Ratio(W:H)4:3Shape Style
    Touchscreen :TP Controller-TP Interface-
    Touch Points-TP Technology4-wire Resistive Touch
    Fixation :Face mounting holes (2-Φ3.2, 2-R1.6) on left, right bezel
    Other Detail :Mass240g (Typ.)SurfaceGlare (Haze 0%)

    Kyocera KCS057QV1AD-G23 Electronics Details

    Refresh Rate :75Hz
    Reverse Scan :No
    Driving Method :Duty: 1/240

    Kyocera KCS057QV1AD-G23 Interface Details

    Signal Electrical :Input Current3.0mA (Typ.)Input Voltage5.0V (Typ.)
    Consumption210/325mW (Typ./Max.)Signal InterfaceParallel Data (8-bit)
    Interface Features :Position-Physical TypeConnector
    Signal Interface :BrandModelAmountPin PitchPin AmountPin Assignment
    molex51021-15001 pcs1.25 mm15 pinsPD-15P1C8B-010B

      Kyocera KCS057QV1AD-G23 Lightting Details

      Lamp Features:Lamp ShapeStraightLamp TypeCCFLPositionEdge light type (Bottom side)
      Exchange-Amount1 pcsLife40K(Typ.) (Hours)
      Lamp Electrical :Input Current2.0/5.0/6.0mA (Min./Typ./Max.)Input Voltage320V (Typ.)
      Frequency30/100KHz (Min./Max.)Turn-on Voltage530/795V (Max.)(Ta=+25/0℃)
      Interface Features :Position-Physical TypeConnector
      Interface Detail :BrandModelAmountPin PitchPin AmountPin Assignment
      JSTBHR-03VS-11 pcs4.0 mm3 pinsBLL-3PINS-HNL
      Backlight Driver :Optional

      FAQ:
      Q1: What's the quality of your LCD Panel?
      A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
      Q2: What is your return and refund policy?
      A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
      Q3: How long is the lead time?
      A: The lead time is about 1-3 working days after receipt of payment.
      Q4: How can I get the quotation?
      A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.


      CS057QV1AD-G23 Kyocera 5.7INCH LCM 320×240RGB 160NITS CCFL INDUSTRIAL LCD DISPLAYCS057QV1AD-G23 Kyocera 5.7INCH LCM 320×240RGB 160NITS CCFL INDUSTRIAL LCD DISPLAY
