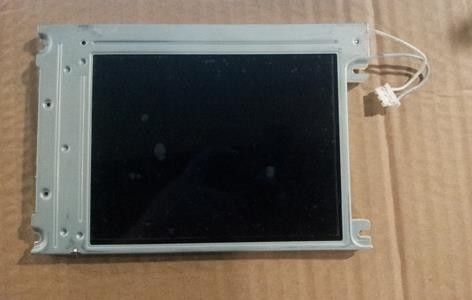

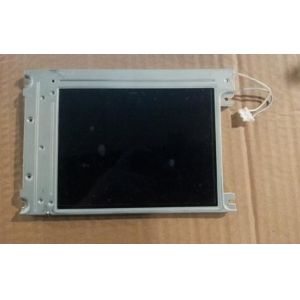

LQ10PX21 Sharp 10" LCM 1024×768RGB INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	SHARP
Model Number :	LQ10PX21
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability :	50PCS
Delivery Time :	1-2 DAYS

Add to Cart

Product Details
Company Profile

LQ10PX21 Sharp 10" LCM 1024×768RGB INDUSTRIAL LCD DISPLAY

LQ10 Series LQ10PX22 LQ10PX21

Sharp LQ10PX21 Mechanical Features

Screen Size :	10.0"
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	1024(RGB)×768, XGA	RGB Vertical Stripe	0.066×0.198 mm	0.198×0.198 mm [128PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	202.752×152.064 mm	205.75×155.06 mm	265×195 mm	8.0 (Typ.) mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	4:3	Landscape type
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	430±20g	-	Clear, Hard coating (2H)
Holes & Brackets :	Face mounting holes (4 pcs)

Sharp LQ10PX21 Optical Features

Basic Information :	Luminance	Work Mode	Contrast Ratio
	-	TN, Normally White, Transmissive	100:1 (Min.) (Transmissive)
	Good View at	Viewing Angle	Response Time
	12 o'clock	35/35/30/10 (Min.)(CR≥10)	30/50 (Typ.)(Tr/Td) (ms)
Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
Dispaly Color :	6485K	262K (6-bit)	X:0.313; Y:0.329
Transmissivity :	5.6% (Typ.)(with Polarizer)

Sharp LQ10PX21 Interface Features

Signal Electrical :	Input Voltage		Input Current			Power Consumption
Signal Electrical :	5.0V (Typ.)(VCC)		300mA (Typ.)(ICC)			-
Voltage for Display Signals :	VIL≤0.6V; 2.6V≤VIH
Interface Features :	Signal Type			Physical Type		Interface Position
Interface Features :	Parallel RGB (2 ch, 6-bit)			Connector		-
Interface Detail :	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail :	JAE	KX14-80K2D	1 pcs	80 pins	0.8 mm	DRGB-80P2C6B-050A

FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
