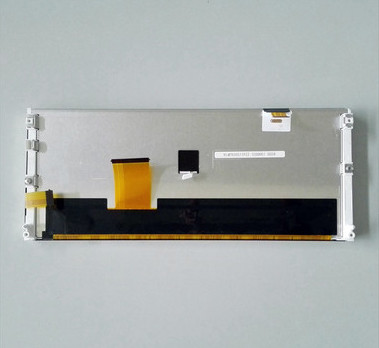

LQ088K9LA02 Sharp 8.8" LCM 1280×480RGB 240cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	SHARP
Model Number :	LQ088K9LA02
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability :	100PCS
Delivery Time :	1-2 DAYS

Add to Cart

Product Details
Company Profile

LQ088K9LA02 Sharp 8.8" LCM 1280×480RGB 240cd/m² INDUSTRIAL LCD DISPLAY

LQ088 Series LQ088K9LA02 LQ088K9LA01

Sharp LQ088K9LA02 Mechanical Features

Panel Size :	8.8 inch
Pixel Features :	Resolution	Pixel Arrangement	Dot Pitch (W×H)	Pixel Pitch (W×H)
Pixel Features :	1280(RGB)×480, DVGA	RGB Vertical Stripe	0.0545×0.1635 mm	0.1635×0.1635 mm [155PPI]
Mechanical Size :	Active Area (W×H)	Bezel Area (W×H)	Outline Dimension (W×H)	Outline Depth
Mechanical Size :	209.28×78.48 mm	213.0×81.0 mm	231.6×94.7 mm	11.25 mm
Outline Features :	Form Style	Aspect Ratio	Orientation	Shape Style
Outline Features :	Flat Rectangle	8:3 (W : H)	Landscape type
Other Features :	Panel Cover	Weight	Surface
Other Features :	-	320g (Max.)	Antiglare, Antireflection

Sharp LQ088K9LA02 Optical Features

Basic Information :	Brightness	Operating Mode	Contrast Ratio
	240 cd/m² (Typ.)	Normally Black, Transflective	360:1 (Typ.) (Transmissive) 5:1 (Typ.) (Reflective)
	Viewing Angle(L/R/U/D)	Viewing Direction	Response Speed
	-	Symmetry	5/5 (Typ.)(Tr/Td) (ms)
Dispaly Color :	Color Temperature	Color Amount	White color Chromaticity
Dispaly Color :	7351K	262K (6-bit)	X:0.300; Y:0.320
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	45%	62%	47%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	47%	34%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation :	1.25/1.30 (Typ./Max.)(9 points)

Sharp LQ088K9LA02 Electronics Features

Frame Rate :	60Hz
Reverse Scan :	Yes (U/D, L/R)

Sharp LQ088K9LA02 Interface Features

Interface Features :	Position	Type	Interface
Interface Features :	-	FPC	RSDS (1 Channel)
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
			1 pcs	0.5 mm	50 pins
			1 pcs	0.5 mm	20 pins

Sharp LQ088K9LA02 Backlight Features

Backlight Features:	Type	Position	Shape	Amount	Life(Hours)	Replacement
Backlight Features:	WLED	Edge light type	4 strings	4 strings	10K(Min.)	-
WLED Electrical :	Current Input		Voltage Input			Consumption
WLED Electrical :	80mA (Typ.)		21.0/24.8/26.9V (Min./Typ./Max.)			7.6W (Typ.)
Interface Features :	Position	Type	WLED Driver
Interface Features :	-	FPC	No
Interface Detail	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Interface Detail			1 pcs	0.5 mm	20 pins

LQ088K9LA02 supports display 1280(RGB)×480 (DVGA) with aspect ratio of 8:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 209.28(W)×78.48(H) mm, outline size of 231.6(W)×94.7(H) mm, viewing area size of 213.0(W)×81.0(H) mm, with surface treament of Antiglare, Antireflection, net weight of 320g (Max.). As a Normally Black, Transflective LCM product, LQ088K9LA02 can provides 240 cd/m² display brightness 360:1 transimissive contrast ratio, 5:1 (Typ.) reflective contrast ratio, best view direction on Symmetry , and response time of 5/5 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted 4 strings WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed.
