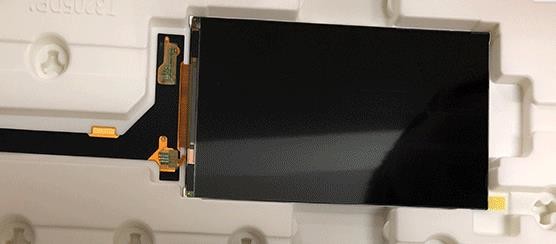

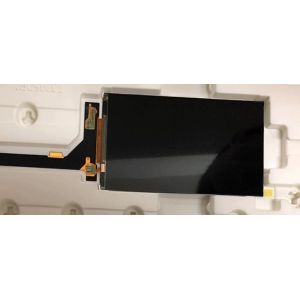

    LS055T1SX01A Sharp TFT LCD Display 5.5 inch 1080(RGB)×1920 Hight Brightness

    Ask Lasest Price
    Brand Name : SHARP
    Model Number : LS055T1SX01A
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROW
    Supply Ability : 2000PCS
    Delivery Time : 1-2 DAYS
    • Product Details
    • Company Profile

    LS055T1SX01A Sharp TFT LCD Display 5.5 inch 1080(RGB)×1920 Hight Brightness

    LS055 Series LS055T1SX01A LS055T1SX01 LS055T3SX05


    Sharp LS055T1SX01A Application Details

    Basic Info :Panel BrandSHARPPanel ModelLS055T1SX01A
    Diagonal Size5.5"Application
    Panel TypeCG-Silicon , LCMModel Alias-
    Reliability :Operating Temp.-20 ~ 60 °CStorage Temp.-30 ~ 70 °C
    RoHS StateVibration Rating-

    Sharp LS055T1SX01A Optical Details

    Basic Information :Brightness500 cd/m² (Typ.)Contrast Ratio1000:1 (Typ.) (Transmissive)
    Viewing Angle80/80/80/80 (Typ.)(CR≥10)Optical ModeNew Mode2, Normally Black, Transmissive
    Viewing DirectionSymmetryResponse Time-
    Color Performance :ChromaticityWx:0.290; Wy:0.310Color Numbers16.7M (8-bit)
    Color Temperature8266KWhite Uniformity1.43 (Max.)(9 points)
    1931 Color Gamlt :NTSC Ratio69%sRGB96% coverage
    Adobe RGB71% coverageDCI-P371% coverage
    Rec.202051% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    Sharp LS055T1SX01A Backlight Details

    Back-light Features:Lamp Shape2 stringsLamp TypeWLEDLife Time-
    Replacement-Amount-PositionEdge light type
    Interface Features :TypeIncluded in panel signal interfacePosition-Lamp DriverNo

    Sharp LS055T1SX01A Mechanical Details

    Pixel Features :Pixel Format1080(RGB)×1920 [FHD]Dot Pitch0.0213×0.0639 mm (H×V)
    ConfigurationRGB Vertical StripePixel Pitch0.0639×0.0639 mm (H×V) [397PPI]
    Mechanical Size :Display Area69.012×122.688 mm (H×V)Bezel Area70.01×123.688 mm (H×V)
    Outline Dim.71.72×130.4 mm (H×V)Outline Depth1.66±0.15 mm
    Outline Features :Form FactorFlat RectangleOrientationPortrait type
    Aspect Ratio9:16 (H:V)Shape Style
    Other Features :Weight25.0g (Typ.)SurfaceClear

    Sharp LS055T1SX01A Electronics Details

    Frame Frequency :60Hz
    Reverse Scan :No
    D-IC Detail :Built-in R63311

    Sharp LS055T1SX01A Interface Details

    Signal Systerm :MIPI (4 data lanes)Logic Voltage-
    Signal Electrical :Voltage Input1.8/5.6/-5.4V (Typ.)(VDDIO/VSP/VSN)Current Input16.9/16.5/11.6mA (Typ.)(IDDIO/ISP/ISN)
    Interface Features :TypeConnectorPosition-
    Connector Detail :BrandModelPin PitchPinsAmountConfiguration
    PanasonicAXT6301240.4 mm30 pins1 pcs

    Sharp LS055T1SX01A Carton Details

    Package Carton :AmountNet WeightCarton Size (L×W×H)
    120 pcs / box7.5 Kgs580×365×187 mm

    LS055T1SX01A Sharp TFT LCD Display 5.5 inch 1080(RGB)×1920 Hight Brightness
