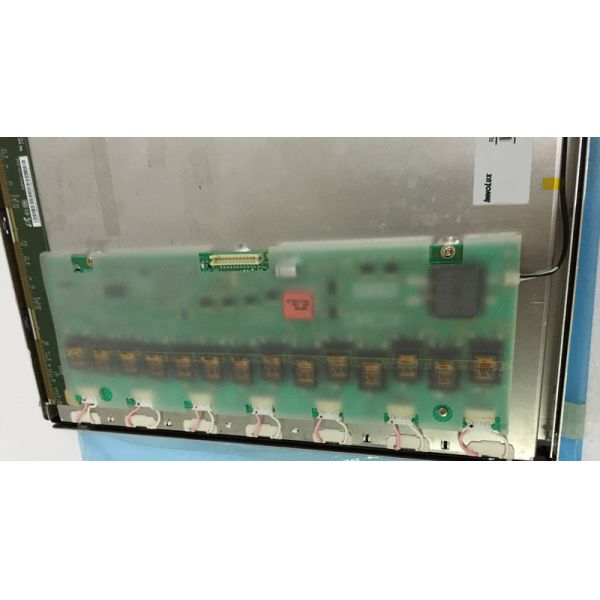

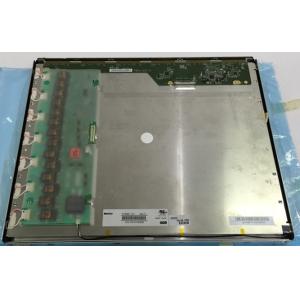

R196UFE-L01 Innolux 19.6" 1600(RGB)×1200 1100 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	INNOLUX
Model Number :	R196UFE-L01
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :	100PCS
Delivery Time :	1-2 DAYS

Add to Cart

Product Details
Company Profile

R196UFE-L01 Innolux 19.6" 1600(RGB)×1200 1100 cd/m² INDUSTRIAL LCD DISPLAY

Innolux R196UFE-L01 Application Details

Basic Info :	Panel Brand		Panel Model	R196UFE-L01
	Diagonal Size	19.6"	Application
	Panel Type	a-Si TFT-LCD , LCM	Model Alias	-
Reliability :	Operating Temp.	0 ~ 55 °C	Storage Temp.	-20 ~ 60 °C

Innolux R196UFE-L01 Mechanical Details

Pixel Features :	Pixel Format	1600(LCR)×1200 [UXGA]	Dot Pitch	0.083×0.249 mm (H×V)
Pixel Features :	Configuration	LCR Vertical Stripe	Pixel Pitch	0.249×0.249 mm (H×V) [102PPI]
Mechanical Size :	Display Area	398.4×298.8 mm (H×V)	Bezel Area	-
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio	4:3 (H:V)	Shape Style

Innolux R196UFE-L01 Optical Details

Basic Information :	Brightness	1100 cd/m² (Typ.)	Contrast Ratio	1200:1 (Typ.) (Transmissive)
	Viewing Angle	88/88/88/88 (Typ.)(CR≥20)	Optical Mode	IPS, Normally Black, Transmissive
	Viewing Direction	Symmetry	Response Time	15/10 (Typ.)(Tr/Td) (ms)
Color Performance :	Chromaticity	Wx:0.294; Wy:0.309	Color Numbers	Grayscale (8-bit)
Color Performance :	Color Temperature	7984K	White Uniformity	-
Dispaly Performance :	Outdoor Visibility	Sunlight Readable	Transmittance

Innolux R196UFE-L01 Electronics Details

Frame Frequency :	60Hz
Reverse Scan :	No

nnolux R196UFE-L01 Backlight Details

Back-light Features:	Lamp Shape	-	Lamp Type	WLED	Life Time	50K(Min.) (Hours)
Back-light Features:	Replacement	-	Amount	-	Position

whose pixels are arranged in LCR Vertical Stripe. As for mechanical detail, it features active area of 398.4(W)×298.8(H) mm. As a IPS, Normally Black, Transmissive LCM product, R196UFE-L01 can provides 1100 cd/m² display brightness 1200:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥20) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 15/10 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of Grayscale colors. This product adopted WLED as it's backlight systerm and have a working life time of 50K hours. R196UFE-L01 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of R196UFE-L01 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with Innolux or it's distributor.
