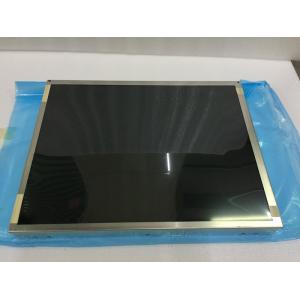

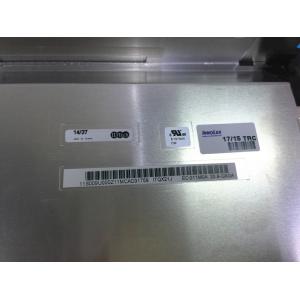

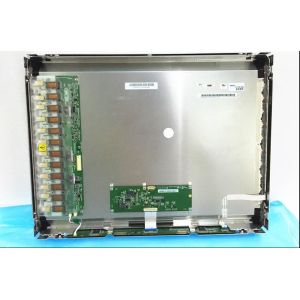

R208R1-L01 CMO 20.8" 2048(RGB)×1536 1000 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	CMO
Model Number :	R208R1-L01
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :	100PCS
Delivery Time :	1-2 DAYS

Add to Cart

Product Details
Company Profile

R208R1-L01 CMO 20.8" 2048(RGB)×1536 1000 cd/m² INDUSTRIAL LCD DISPLAY

CMO R208R1-L01 Application Features

Basic Information :	Brand	Model 1 Compatible	Type	Model Alias
Basic Information :		R208R1-L01	a-Si TFT-LCD , LCM	ITQX21J
Reliability :	RoHS	Operating Temperature	Storage Temperature	Vibration Resistance
Reliability :		0 ~ 50 °C	-20 ~ 60 °C

CMO R208R1-L01 Mechanical Features

Panel Size :	20.8 inch
Pixel Features :	Resolution	Pixel Arrangement	Dot Pitch (W×H)	Pixel Pitch (W×H)
Pixel Features :	2048(LCR)×1536, QXGA	LCR Vertical Stripe	0.069×0.207 mm	0.207×0.207 mm [122PPI]
Mechanical Size :	Active Area (W×H)	Bezel Area (W×H)	Outline Dimension (W×H)	Outline Depth
Mechanical Size :	423.9×318 mm	427.9×322.0 mm	457×350 mm	45.0 (Typ.) mm
Outline Features :	Form Style	Aspect Ratio	Orientation	Shape Style
Outline Features :	Flat Rectangle	4:3 (W : H)	Landscape type
Fixation :	Side mounting holes (8-M3)
Other Features :	Panel Cover	Weight	Surface
Other Features :	-	2.30Kgs (Typ.)	Antiglare, Hard coating (3H)

CMO R208R1-L01 Optical Features

Basic Information :	Brightness	Operating Mode	Contrast Ratio
	1000 cd/m² (Typ.)	IPS, Normally Black, Transmissive	900:1 (Typ.) (Transmissive)
	Viewing Angle(L/R/U/D)	Viewing Direction	Response Speed
	85/85/85/85 (Typ.)(CR≥10)	Symmetry	25/25 (Typ.)(Tr/Td) (ms)
Dispaly Color :	Color Temperature	Color Amount	White color Chromaticity
Dispaly Color :	7984K	Grayscale (8-bit)	X:0.294; Y:0.309
Performance :	3D Type	Outdoor Visibility	Reflectance
Performance :	-	Sunlight Readable

CMO R208R1-L01 Interface Features

Signal Electrical :	Current Input		Voltage Input			Consumption
Signal Electrical :	0.75/0.90A (Typ./Max.)		12.0V (Typ.)			9/10.8W (Typ./Max.)
Interface Features :	Position	Type	Interface
Interface Features :	-	Connector	LVDS (4 ch, 8-bit)
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
	LS Mtron	GT121-31P-TD-A	2 pcs	1.25 mm	31 pins
	JAE	IL-Z-8PL-SMTY	1 pcs	1.25 mm	8 pins

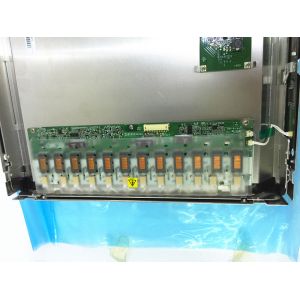

CMO R208R1-L01 Backlight Features

Backlight Features:	Type	Position	Shape	Amount	Life(Hours)	Replacement
Backlight Features:	CCFL	Direct light type	-	-	30K(Typ.)	-
Interface Features :	Position	Type	CCFL Driver
Interface Features :	-	Connector	With Inverter
Interface Detail	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Interface Detail	JST	S12B-PH-SM4-TB(LF)(SN)	1 pcs	2.0 mm	12 pins
Driver Electrical :	Current Input		Voltage Input			Consumption
Driver Electrical :	-		12.0V (Typ.)			51/56W (Typ./Max.)

CMO R208R1-L01 Packing Features

Package Carton :	Amount	Weight	Carton Size
Package Carton :	5 pcs / box

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
