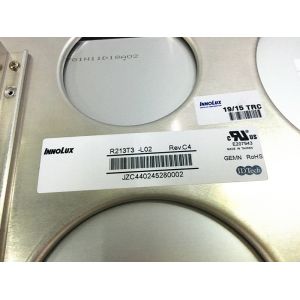

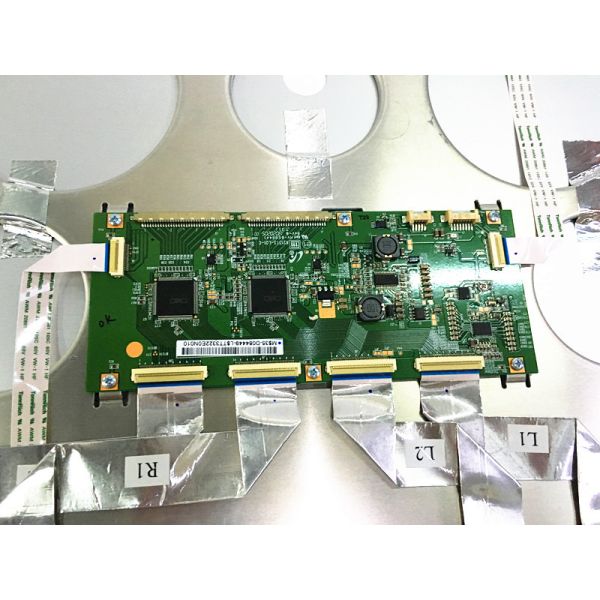

R213T1-L01 CMO 21.3" 2560(RGB)×2048 1000 cd/m² INDUSTRIAL LCD DISPLAY

Product Categories

Sapientia Display Co.,LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

R213T1-L01 CMO 21.3" 2560(RGB)×2048 1000 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	INNOLUX
Model Number :	R213T1-L01
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :	100PCS
Delivery Time :	1-2 DAYS

Add to Cart

Product Details
Company Profile

R213T1-L01 CMO 21.3" 2560(RGB)×2048 1000 cd/m² INDUSTRIAL LCD DISPLAY

CMO R213T1-L01 Application Details

Basic Information :	Brand		Model	R213T1-L01 1 Compatible
	Type	LCM a-Si TFT-LCD	Used For
	Screen Size	21.3"	Alias	IAQS80F
Environment :	Storage Temp.	-20 ~~ 60 °C	Operating Temp.	0 ~~ 50 °C

CMO R213T1-L01 Mechanical Details

Pixel Features :	Resolution	2560(LCR)×2048, QSXGA	Dot Pitch(mm)	0.055×0.165 (H×V)
Pixel Features :	Pixel Format	LCR Vertical Stripe	Pixel Pitch(mm)	0.165×0.165 (H×V) [153PPI]
Mechanical Size :	Active Area(mm)	422.4(H) × 337.92(V)	Bezel Area(mm)	426.4(H) × 344.5(V)
Mechanical Size :	Outline Dim.(mm)	459.8(H) × 375.3(V)	Depth(mm)	49.0 (Max.)
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	5:4 (H:V)	Orientation	Landscape type
Mounting :	Side mounting holes (6-M3) on left, right bezel
Other Spec :	Weight	2.97Kgs (Typ.)	Treatment	-

CMO R213T1-L01 Optical Details

Basic Information :	Luminance(cd/m²)	1000 (Typ.)	Contrast Ratio	700:1 (Typ.) (Transmissive)
	Viewing Angle	85/85/85/85 (Typ.)(CR≥10)	Display Mode	DD-IPS, Normally Black, Transmissive
	Best View on	Symmetry	Response(ms)	25/25 (Typ.)(Tr/Td)
Color Performance :	White Coordinate	X:0.294; Y:0.309	Display Colors	Grayscale (8-bit)
Color Performance :	Color Temperature	7984K	White Uniformity	-
Dispaly Performance :	Outdoor Visibility	Sunlight Readable	Transmissivity

CMO R213T1-L01 Interface Details

Signal Electrical :	Voltage Supply	12.0V (Typ.)		Current Supply	0.7/1.7A (Min./Max.)
Signal Electrical :	Consumption	8.1/18.3W (Typ.)
Signal Type :	LVDS (4 ch, 8-bit)			Signal Voltage	-
Interface Features :	Position	-		Type	Connector
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
	JAE	FI-X30S-HF-NPB	2 pcs	30 pins	1.0 mm
	JAE	IL-Z-8PL-SMTY	1 pcs	8 pins	1.25 mm
	JAE	IL-Z-5PL-SMTY	1 pcs	5 pins	1.25 mm

CMO R213T1-L01 Backlight Details

Backlight Features:	Shape	Straight	Type	CCFL	Position	Direct light type
Backlight Features:	Replacement	-	Quantity	12 pcs	Life Time	50K(Typ.) (Hours)
Interface Features :	Position	-		Type	Connector
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail :	JST	B12B-PH-SM4-TB(LF)(SN)	1 pcs	12 pins	2.0 mm
Backlight Driver :	With Inverter
Driver Electrical :	Voltage Supply	12.0V (Typ.)		Current Supply	3.0/3.7/4.2A (Min./Typ./Max.)
Driver Electrical :	Consumption	44/50W (Typ./Max.)

CMO R213T1-L01 Electronics Details

Frame Rate :	60Hz
Reverse Scan :	No
Power Consumption :	52.1W (Typ.)
