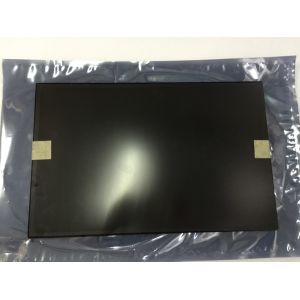

LM201WE2-SLA1 LG. LCD 20.1" 1680×1050 470cd/m2 INDUSTRIAL LCD DISPLAY 98PPI

Ask Lasest Price
Brand Name :	LG. LCD
Model Number :	LM201WE2-SLA1
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :	100PCS
Delivery Time :	1-2 DAYS

Add to Cart

Product Details
Company Profile

LM201WE2-SLA1 LG. LCD 20.1" 1680×1050 470cd/m2 INDUSTRIAL LCD DISPLAY 98PPI

LG. LCD LM201WE2-SLA1 Application Features

Basic Information :	Brand Name	Model Name	Type	Model Alias
Basic Information :		LM201WE2-SLA1	a-Si TFT-LCD , LCM	LM201WE2 (SL)(A1)
Maximum Ratings :	RoHS	Operating Temperature	Storage Temperature	Vibration Level
Maximum Ratings :		0 ~ 50 °C	-20 ~ 60 °C

LG. LCD LM201WE2-SLA1 Mechanical Features

Screen Size :	20.1"
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	1680(RGB)×1050, WSXGA+	RGB Vertical Stripe	0.086×0.258 mm	0.258×0.258 mm [98PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	433.44×270.9 mm	438.4×275.9 mm	461.4×296.8 mm	36.9 (Typ.) mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	16:10	Landscape type	Normal bezel
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	2.68Kgs (Typ.)	-	Glare (Haze 0%)
Holes & Brackets :	Face mounting holes

LG. LCD LM201WE2-SLA1 Optical Features

Basic Information :	Luminance	Work Mode	Contrast Ratio
	470 cd/m² (Typ.)	S-IPS, Normally Black, Transmissive	1600:1 (Typ.) (Transmissive)
	Good View at	Viewing Angle	Response Time
	Symmetry	89/89/89/89 (Typ.)(CR≥10)	5/7 (Typ.)(Tr/Td), 6 (Typ.)(G to G) (ms)
Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
Dispaly Color :	6485K	16.7M (8-bit)	X:0.313; Y:0.329
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	73%	95%	76%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	76%	54%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity :	1.45 (Max.)(9 points)

LG. LCD LM201WE2-SLA1 Backlight Features

Back-light Features:	Type	Position	Life(Hours)	Amount	Shape	Replacement
Back-light Features:	CCFL	Direct light type	50K(Min.)	10 pcs	Straight	-
Interface Features :	CCFL Driver State			Physical Type		Interface Position
Interface Features :	With Inverter			Connector		-
Interface Detail	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail	JST	S14B-PHA-SM3-TB	1 pcs	14 pins	2.0 mm
CCFL Driver Electrical :	Input Voltage		Input Current			Power Consumption
CCFL Driver Electrical :	24.0±2.0V		1.92/2.28A (Typ./Max.)			46.1±4.6W

LG. LCD LM201WE2-SLA1 Interface Features

Signal Electrical :	Input Voltage		Input Current			Power Consumption
Signal Electrical :	12.0V (Typ.)		460/560mA (Typ./Max.)			5.59/6.72W (Typ./Max.)
Interface Features :	Signal Type			Physical Type		Interface Position
Interface Features :	LVDS (2 ch, 8-bit)			Connector		-
Interface Detail :	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail :	UJU	IS100-L30B-C23	1 pcs	30 pins	1.0 mm	LVDS-30P2C8B-180C

LG. LCD LM201WE2-SLA1 Packing Features

Package Box :	Amount	Weight	Size (L×W×H)
Package Box :	6 pcs / box	-	409×489×543 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
