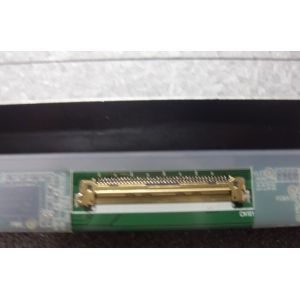

N116BGE-L42 CHIMEI Innolux 11.6" 1366(RGB)×768 200 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	INNOLUX
Model Number :	N116BGE-L42
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :	100PCS
Delivery Time :	1-2 DAYS

Add to Cart

Product Details
Company Profile

N116BGE-L42 CHIMEI Innolux 11.6" 1366(RGB)×768 200 cd/m² INDUSTRIAL LCD DISPLAY

Chimei Innolux N116BGE-L42 Application Features

Basic Information :	Brand Name	Model Name 3 Compatible	Type	Model Alias
Basic Information :		N116BGE-L42	a-Si TFT-LCD , LCM	CMN1119
Maximum Ratings :	RoHS	Operating Temperature	Storage Temperature	Vibration Level
Maximum Ratings :		0 ~ 50 °C	-20 ~ 60 °C

Chimei Innolux N116BGE-L42 Mechanical Features

Screen Size :	11.6"
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	1366(RGB)×768, WXGA	RGB Vertical Stripe	0.0625×0.1875 mm	0.1875×0.1875 mm [135PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	256.125×144 mm	259.125×146.8 mm	278×168 mm	3.2/3.4 (Typ./Max.) mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	16:9	Landscape type	Flat (PCBA Flat, T3.4~4.0mm)
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	205/215g (Typ./Max.)	-	Glare (Haze 0%), Hard coating (3H)
Holes & Brackets :	Face mounting holes (8 pcs) on left, right brackets

Chimei Innolux N116BGE-L42 Optical Features

Basic Information :	Luminance	Work Mode	Contrast Ratio
	200 cd/m² (Typ.)	TN, Normally White, Transmissive	500:1 (Typ.) (Transmissive)
	Good View at	Viewing Angle	Response Time
	6 o'clock	45/45/20/45 (Typ.)(CR≥10)	3/7 (Typ.)(Tr/Td) (ms)
Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
Dispaly Color :	6485K	262K (6-bit)	X:0.313; Y:0.329
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	47%	66%	49%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	49%	35%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity :	1.25/1.60 (Max.)(5/13 points)

Chimei Innolux N116BGE-L42 Backlight Features

Back-light Features:	Type	Position	Life(Hours)	Amount	Shape	Replacement
Back-light Features:	WLED	Edge light type	12K(Min.)	-	-	-
WLED Electrical :	Input Voltage		Input Current			Power Consumption
WLED Electrical :	25/29/30V (Min./Typ./Max.)		49±2.45mA			1.16/1.43/1.55W (Min./Typ./Max.)
Interface Features :	WLED Driver State			Physical Type		Interface Position
Interface Features :	With LED Driver			Included in panel signal interface		-
WLED Driver Electrical :	Input Voltage		Input Current			Power Consumption
WLED Driver Electrical :	5.0/12.0/21.0V (Min./Typ./Max.)		108/139/151mA (Min./Typ./Max.)			1.81W (Max.)

Chimei Innolux N116BGE-L42 Interface Features

Signal Electrical :	Input Voltage		Input Current			Power Consumption
Signal Electrical :	3.3V (Typ.)		207/232mA (Typ./Max.)			0.69W (Max.)
Interface Features :	Signal Type			Physical Type		Interface Position
Interface Features :	LVDS (1 ch, 6-bit)			Connector
Interface Detail :	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail :	I-PEX	20455-040E-12	1 pcs	40 pins	0.5 mm	LVDS-40P1C6B-050A

Chimei Innolux N116BGE-L42 Packing Features

Package Box :	Amount	Weight	Size (L×W×H)
Package Box :	40 pcs / box	11 Kgs	489×382×275 mm (L×W×H)
