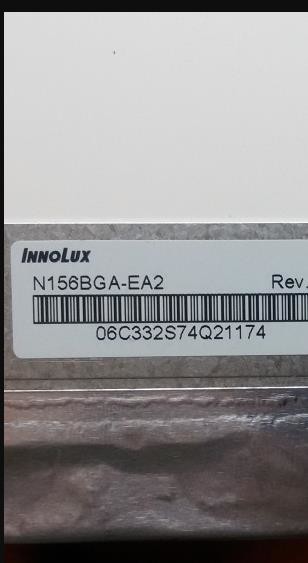

N156BGA-EA2 Innolux 15.6" 1366(RGB)×768 220 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	INNOLUX
Model Number :	N156BGA-EA2
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :	2000PCS
Delivery Time :	1-2 DAYS

Add to Cart

Product Details
Company Profile

N156BGA-EA2 Innolux 15.6" 1366(RGB)×768 220 cd/m² INDUSTRIAL LCD DISPLAY

Innolux N156BGA-EA2 Application Features

Basic Information :	Brand Name	Model Name 14 Compatible	Type	Model Alias
Basic Information :		N156BGA-EA2	a-Si TFT-LCD , LCM	CMN15DB
Maximum Ratings :	RoHS	Operating Temperature	Storage Temperature	Vibration Level
Maximum Ratings :		0 ~ 50 °C	-20 ~ 60 °C

Innolux N156BGA-EA2 Mechanical Features

Screen Size :	15.6"
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	1366(RGB)×768, WXGA	RGB Vertical Stripe	0.084×0.252 mm	0.252×0.252 mm [100PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	344.232×193.536 mm	347.36×196.84 mm	359.5×223.8 mm	3.0/3.2 (Typ./Max.) mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	16:9	Landscape type	Slim (PCBA Flat, T≤3.2mm)
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	345/360g (Typ./Max.)	-	Antiglare, Hard coating (3H)
Holes & Brackets :	Face mounting holes (8 pcs) on up, down slugs

Innolux N156BGA-EA2 Optical Features

Basic Information :	Luminance	Work Mode	Contrast Ratio
	220 cd/m² (Typ.)	TN, Normally White, Transmissive	600:1 (Typ.) (Transmissive)
	Good View at	Viewing Angle	Response Time
	6 o'clock	45/45/20/45 (Typ.)(CR≥10)	3/7 (Typ.)(Tr/Td) (ms)
Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
Dispaly Color :	6485K	262K (6-bit)	X:0.313; Y:0.329
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	46%	64%	48%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	48%	34%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity :	1.25 (Max.)(5 points)

Innolux N156BGA-EA2 Backlight Features

Back-light Features:	Type	Position	Life(Hours)	Amount	Shape	Replacement
Back-light Features:	WLED	Edge light type	15K(Min.)	-	-	-
Interface Features :	WLED Driver State			Physical Type		Interface Position
Interface Features :	With LED Driver			Included in panel signal interface		-
WLED Driver Electrical :	Input Voltage		Input Current			Power Consumption
WLED Driver Electrical :	5.0/12.0/21.0V (Min./Typ./Max.)		159/200/213mA (Min./Typ./Max.)			2.55W (Max.)

Innolux N156BGA-EA2 Interface Features

Signal Electrical :	Input Voltage		Input Current			Power Consumption
Signal Electrical :	3.3V (Typ.)		180/257mA (Typ./Max.)			0.85W (Max.)
Interface Features :	Signal Type			Physical Type		Interface Position
Interface Features :	eDP (1 Lane)			Connector
Interface Detail :	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail :	I-PEX	20455-030E-12	1 pcs	30 pins	0.5 mm	EDP-30P1L-030A

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
