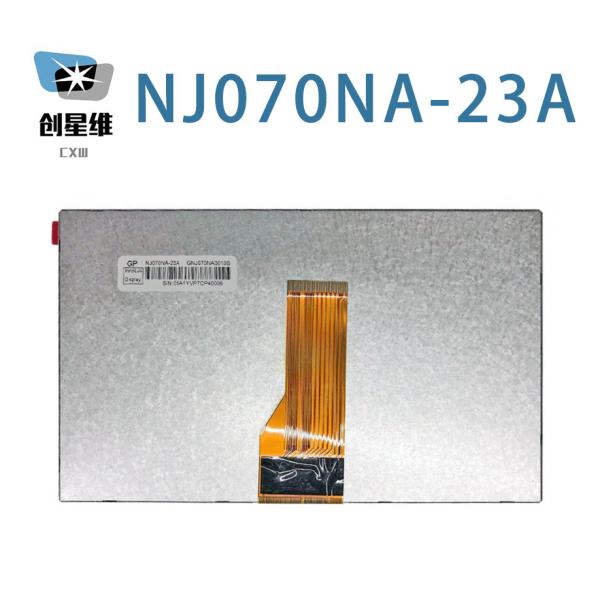

    NJ070NA-23A Innolux 7.0" 1024(RGB)×600, 500 cd/m² INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : Innolux
    Model Number : NJ070NA-23A
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION
    Delivery Time : 1-2DAYS
    • Product Details
    • Company Profile

    NJ070NA-23A Innolux 7.0" 1024(RGB)×600, 500 cd/m² INDUSTRIAL LCD DISPLAY

    Innolux NJ070NA-23A Application Features

    Basic Information :ManufacturerPanel ModelPanel TypeAlias
    NJ070NA-23Aa-Si TFT-LCD , LCM-
    Environment :RoHS StateOperating Temp.Storage Temp.Vibration Level
    -20 ~ 70 °C-30 ~ 80 °C

    Innolux NJ070NA-23A Optical Features

    Basic Information :Luminance (cd/m²)Viewing Angle (L/R/U/D)Response Time (ms)
    500 (Typ.)80/80/60/70 (Typ.)(CR≥10)10/15 (Typ.)(Tr/Td)
    Best View onDisplay ModeContrast Ratio
    6 o'clockTN, Normally White, Transmissive800 : 1 (Typ.) (Transmissive)
    Dispaly Color :Color TemperatureDisplay ColorsWhite Coordinate
    6638K262K/16.7M (6-bit / 8-bit)X:0.310; Y:0.330
    White Variation :1.33/1.43 (Typ./Max.)(9 points)

    Innolux NJ070NA-23A Mechanical Features

    Panel Size :7.0"
    Pixel Features :Pixel FormatPixel ConfigurationPixel Pitch (mm)Dot Pitch (mm)
    1024(RGB)×600 [WSVGA]RGB Vertical Stripe0.1506×0.1432 [170PPI]0.0502×0.1432
    Mechanical Size :Active Area (mm)Bezel Area (mm)Outline Dimension (mm)Outline Depth (mm)
    154.214(H) × 85.92(V)157.21(H) × 89.49(V)164.9(H) × 100(V)4.8±0.3 mm
    Outline Features :Form FactorOrientationAspect RatioShape Style
    Flat RectangleLandscape type16:9 (H:V)
    Mounting :Without
    Other Detail :WeightPanel CoverTreatment
    1350g (Typ.)-Hard coating

    Innolux NJ070NA-23A Backlight Features

    Lamp Features:TypePositionQuantityShapeLife(Hours)Lamp Exchange
    WLEDEdge light type--20K(Min.)-
    WLED Electrical :Voltage SupplyCurrent SupplyPower
    8.4/9.9/10.2V (Typ./Max.)265mA (Typ.)2.62W (Typ.)
    Interface Features :PositionBacklight DriverType
    -NoIncluded in signal interface

    Innolux NJ070NA-23A Interface Features

    Panel Driving Electrical :Voltage SupplyCurrent SupplyPower
    3.3/12/15/-10V (Typ.)(DVDD/AVDD/VGH/VGL)35/20/0.4/0.8mA (Typ.)(DIDD/AIDD/IGH/IGL)0.4W (Typ.)
    Interface Features :PositionSignalType
    -LVDS (1 ch, 6/8-bit)FPC
    FPC Detail :BrandModelPin PitchPin AmountQuantityConfiguration
    0.5 mm40 pins1 pcs

    whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 154.214(W)×85.92(H) mm, outline size of 164.9(W)×100(H)×5.1(D) mm, viewing area size of 157.21(W)×89.49(H) mm, with surface treament of Hard coating, net weight of 1350g (Typ.). As a TN, Normally White, Transmissive LCM product, NJ070NA-23A can provides 500 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/60/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. NJ070NA-23A utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3/12/15/-10V (Typ.)(DVDD/AVDD/VGH/VGL).
