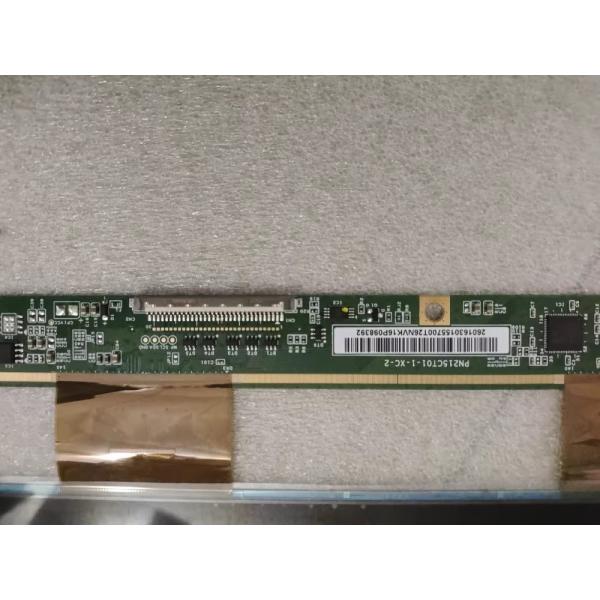

PN215CT01-1 HKC 21.5" 1920(RGB)×1080, 0 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	HKC
Model Number :	PN215CT01-1
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Delivery Time :	1-2DAYS

Add to Cart

Product Details
Company Profile

PN215CT01-1 HKC 21.5" 1920(RGB)×1080, 0 cd/m² INDUSTRIAL LCD DISPLAY

HKC PN215CT01-1 Application Features

Basic Information :	Brand	Model	Type	Model Alias
Basic Information :		PN215CT01-1	a-Si TFT-LCD , CELL	-
Reliability :	RoHS	Operating Temperature	Storage Temperature	Vibration Resistance
Reliability :		0 ~ 50 °C	-20 ~ 60 °C

HKC PN215CT01-1 Mechanical Features

Panel Size :	21.5 inch
Pixel Features :	Resolution	Pixel Arrangement	Dot Pitch (W×H)	Pixel Pitch (W×H)
Pixel Features :	1920(RGB)×1080, FHD	RGB Vertical Stripe	0.08275×0.24825 mm	0.24825×0.24825 mm [102PPI]
Mechanical Size :	Active Area (W×H)	Bezel Area (W×H)	Outline Dimension (W×H)	Outline Depth
Mechanical Size :	476.64×268.11 mm	-	487.44×278.182 mm	1.36 (Typ.) mm
Outline Features :	Form Style	Aspect Ratio	Orientation	Plate Thickness
Outline Features :	Flat Rectangle	16:9 (W : H)	Landscape type	0.50+0.50 mm
Other Features :	Panel Cover	Weight	Surface
Other Features :	-	TBD	Antiglare (Haze 25%), Hard coating (3H)

HKC PN215CT01-1 Optical Features

Basic Information :	Brightness	Operating Mode	Contrast Ratio
	0 cd/m²	FSA, Normally Black, Transmissive	3000:1 (Typ.) (Transmissive)
	Viewing Angle(L/R/U/D)	Viewing Direction	Response Speed
	89/89/89/89 (Typ.)(CR≥10)	Symmetry	7 (Typ.)(G to G) (ms)
Dispaly Color :	Color Temperature	Color Amount	White color Chromaticity
Dispaly Color :	9173K	16.7M (8-bit)	X:0.287; Y:0.291
1931 Color Gamut :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	73%	95%	74%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	75%	54%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Transmittance :	5.1% (Typ.)(with Polarizer)

HKC PN215CT01-1 Interface Features

Signal Electrical :	Current Input		Voltage Input			Consumption
Signal Electrical :	0.8/1.04A (Typ./Max.)		5.0V (Typ.)			4.0/5.2W (Typ./Max.)
Interface Features :	Position	Type	Interface
Interface Features :	-	Connector	LVDS (2 ch, 8-bit)
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Signal Interface :	XDYT	3-10122314-0	1 pcs	1.0 mm	30 pins

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 476.64(W)×268.11(H) mm, outline size of 487.44(W)×278.182(H)×1.36(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of TBD, utilizing 0.50+0.50 mm mm plate. As a FSA, Normally Black, Transmissive CELL product, PN215CT01-1 can provides 3000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 7 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product have no backlight. PN215CT01-1 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz
