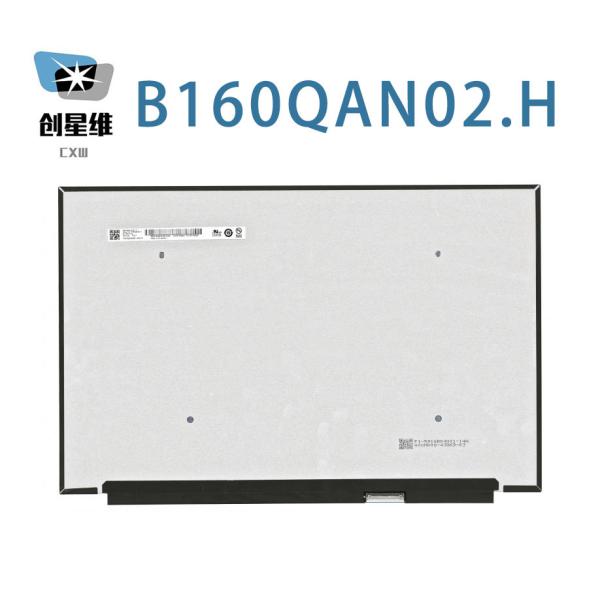

    B160QAN02.H AUO 16.0" 2560(RGB)×1600, 350 cd/m² INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : AUO
    Model Number : B160QAN02.H
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION
    Delivery Time : 1-2DAYS
    • Product Details
    • Company Profile

    B160QAN02.H AUO 16.0" 2560(RGB)×1600, 350 cd/m² INDUSTRIAL LCD DISPLAY

    AUO B160QAN02.H Application Details

    Basic Detail :ManufacturerModel NameB160QAN02.H
    Panel TypeLTPS TFT-LCD , LCMAnother NameAUOF19F
    Panel Size16.0 inchDesigned For



    Maximum Ratings :OP Temperature0 ~ 50 °CST Temperature-20 ~ 60 °C
    Vibration Level1.5G (14.7 m/s²)

    AUO B160QAN02.H Optical Details

    Basic Information :Luminance350 cd/m² (Typ.)Contrast Ratio1200 : 1 (Typ.) (Transmissive)
    Good View atSymmetryResponse Speed5 (Typ.)(G to G) (ms)
    Viewing Angle89/89/89/89 (Typ.)(CR≥10)Operating ModeAHVA, Normally Black, Transmissive
    Color Performance :ChromaticityWx:0.313; Wy:0.329Support Color1.06B (8-bit + FRC)
    Color Temperature6485KWhite Uniformity1.25/1.53 (Max.)(5/13 points)
    1931 Color Gamut :NTSC Ratio71%sRGB100% coverage
    Adobe RGB74% coverageDCI-P374% coverage
    Rec.202053% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    AUO B160QAN02.H Mechanical Details

    Pixel Features :Number of Pixel2560(RGB)×1600 [WQXGA]ArrangementRGB Vertical Stripe
    Dot Pitch(W×H)0.04488×0.13464 mmPixel Pitch(W×H)0.13464×0.13464 mm [188PPI]
    Physical Size :Active Viewing344.678(W)×215.424(H) mmOverall Dim.349.68(W)×224.42(H) mm
    Bezel Opening-Overall Depth2.45/3.0 (Typ./Max.) mm
    Outline Features :Form ShapeFlat RectangleOrientationLandscape type
    Aspect Ratio(W:H)16:10Shape StyleSlim (PCBA Flat, T≤3.2mm)
    Fixation :Without
    Other Detail :Mass315g (Max.)SurfaceAntiglare, Hard coating (3H)

    AUO B160QAN02.H Interface Details

    Signal Electrical :Input Current483mA (Max.)Input Voltage3.3V (Typ.)
    Consumption1.1/1.45W (Typ./Max.)Signal InterfaceeDP (4 Lanes), eDP1.4, HBR3 (8.1G/lane)
    Interface Features :PositionPhysical TypeConnector
    Signal Interface :BrandModelAmountPin PitchPin AmountPin Assignment
    I-PEX20765-040E-111 pcs0.5 mm40 pins

    AUO B160QAN02.H Lightting Details

    Lamp Features:Lamp Shape-Lamp TypeWLEDPositionEdge light type
    Exchange-Amount-Life15K(Min.) (Hours)
    Interface Features :Position-Physical TypeIncluded in signal interface
    Backlight Driver :With LED Driver
    Driver Electrical :Input Current-Input Voltage5.0/12.0/20.0V (Min./Typ./Max.)
    Consumption4.0W (Max.)

    whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.678(W)×215.424(H) mm, outline size of 349.68(W)×224.42(H)×3(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 315g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a AHVA, Normally Black, Transmissive LCM product, B160QAN02.H can provides 350 cd/m² display brightness 1200:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 5 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + FRC gray scale signal for each dot, thus presenting a palette of 1.06B colors, also with performance of color gamut 100% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. B160QAN02.H utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.).
