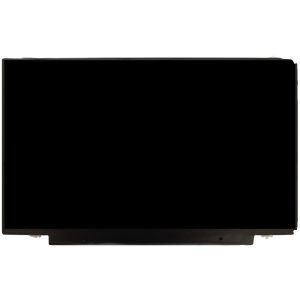

    Buy cheap NV140FHM-N4X BOE 14.0" 1920(RGB)×1080, FHD 157PPI 250 cd/m² INDUSTRIAL LCD DISPLAY from wholesalers

    Buy cheap NV140FHM-N4X BOE 14.0" 1920(RGB)×1080, FHD 157PPI 250 cd/m² INDUSTRIAL LCD DISPLAY from wholesalers
    • Buy cheap NV140FHM-N4X BOE 14.0" 1920(RGB)×1080, FHD 157PPI 250 cd/m² INDUSTRIAL LCD DISPLAY from wholesalers
    • Buy cheap NV140FHM-N4X BOE 14.0" 1920(RGB)×1080, FHD 157PPI 250 cd/m² INDUSTRIAL LCD DISPLAY from wholesalers
    • Buy cheap NV140FHM-N4X BOE 14.0" 1920(RGB)×1080, FHD 157PPI 250 cd/m² INDUSTRIAL LCD DISPLAY from wholesalers

    NV140FHM-N4X BOE 14.0" 1920(RGB)×1080, FHD 157PPI 250 cd/m² INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : BOE
    Model Number : NV140FHM-N4X
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION
    Delivery Time : 1-2DAYS
    • Product Details
    • Company Profile

    NV140FHM-N4X BOE 14.0" 1920(RGB)×1080, FHD 157PPI 250 cd/m² INDUSTRIAL LCD DISPLAY

    BOE NV140FHM-N4X Application Features

    Basic Information :ManufacturerPanel ModelPanel TypeAlias
    NV140FHM-N4Xa-Si TFT-LCD , LCMBOE09D1
    Environment :RoHS StateOperating Temp.Storage Temp.Vibration Level
    0 ~ 50 °C-20 ~ 60 °C

    BOE NV140FHM-N4X Optical Features

    Basic Information :Luminance (cd/m²)Viewing Angle (L/R/U/D)Response Time (ms)
    250 (Typ.)85/85/85/85 (Typ.)(CR≥10)30 (Typ.)(Tr+Td)
    Best View onDisplay ModeContrast Ratio
    SymmetryADS, Normally Black, Transmissive800 : 1 (Typ.) (Transmissive)
    Dispaly Color :Color TemperatureDisplay ColorsWhite Coordinate
    6485K262K (6-bit)X:0.313; Y:0.329
    1931 Color Gamut :NTSC RatiosRGB CoverageAdobe RGB Coverage
    47%66%50%
    DCI-P3 CoverageRec.2020 CoverageRemarks
    49%35%sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
    White Variation :1.26/1.60 (Max.)(5/13 points)

    BOE NV140FHM-N4X Mechanical Features

    Panel Size :14.0"
    Pixel Features :Pixel FormatPixel ConfigurationPixel Pitch (mm)Dot Pitch (mm)
    1920(RGB)×1080 [FHD]RGB Vertical Stripe0.1611×0.1611 [157PPI]0.0537×0.1611
    Mechanical Size :Active Area (mm)Bezel Area (mm)Outline Dimension (mm)Outline Depth (mm)
    309.31(H) × 173.99(V)-315.81(H) × 197.48(V)2.85/3.0 (Typ./Max.) mm
    Outline Features :Form FactorOrientationAspect RatioShape Style
    Flat RectangleLandscape type16:9 (H:V)Slim (PCBA Flat, T≤3.2mm)
    Mounting :Without
    Other Detail :WeightPanel CoverTreatment
    285g (Max.)-Antiglare, Hard coating (3H)

    BOE NV140FHM-N4X Backlight Features

    Lamp Features:TypePositionQuantityShapeLife(Hours)Lamp Exchange
    WLEDEdge light type (Bottom side)8S4P4 strings15K(Min.)-
    Interface Features :PositionBacklight DriverType
    -With LED DriverIncluded in signal interface
    Driver Electrical :Voltage SupplyCurrent SupplyPower Consumption
    5.0/12.0/21.0V (Min./Typ./Max.)225mA (Max.)2.7W (Max.)

    BOE NV140FHM-N4X Interface Features

    Panel Driving Electrical :Voltage SupplyCurrent SupplyPower
    3.3V (Typ.)273mA (Max.)0.9W (Max.)
    Interface Features :PositionSignalType
    eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane)Connector
    Connector Detail :BrandModelPin PitchPin AmountQuantityConfiguration
    UJUIS050-L30B-C100.5 mm30 pins1 pcsEDP-30P2L-020A

    whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 309.31(W)×173.99(H) mm, outline size of 315.81(W)×197.48(H)×3(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 285g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a ADS, Normally Black, Transmissive LCM product, NV140FHM-N4X can provides 250 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted 8S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 15K hours, With LED Driver. NV140FHM-N4X utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.)
