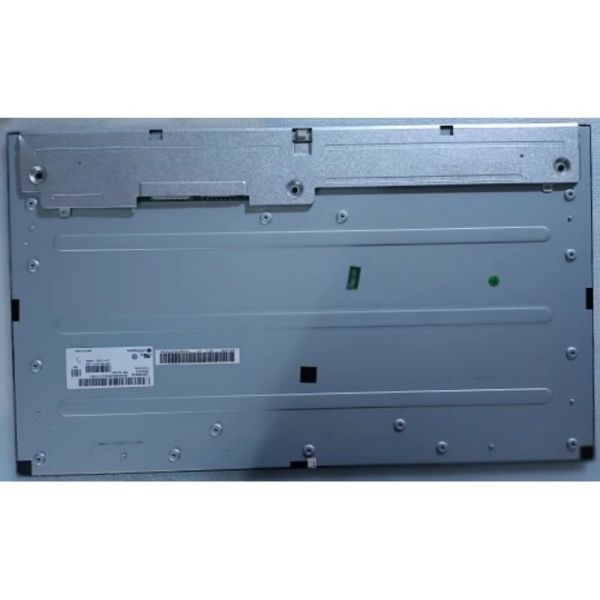

    LM238WQ1-SSA1 LG Display 23.8" 2560(RGB)×1440, 300 cd/m² INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : LG Display
    Model Number : LM238WQ1-SSA1
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION
    Delivery Time : 1-2DAYS
    • Product Details
    • Company Profile

    LM238WQ1-SSA1 LG Display 23.8" 2560(RGB)×1440, 300 cd/m² INDUSTRIAL LCD DISPLAY

    LG Display LM238WQ1-SSA1 Application Details

    Basic Detail :ManufacturerModel NameLM238WQ1-SSA1
    Panel Typea-Si TFT-LCD , LCMAnother NameLM238WQ1 (SS)(A1)
    Panel Size23.8 inchDesigned For
    Maximum Ratings :OP Temperature0 ~ 50 °CST Temperature-20 ~ 60 °C

    LG Display LM238WQ1-SSA1 Optical Details

    Basic Information :Luminance300 cd/m² (Typ.)Contrast Ratio1000 : 1 (Typ.) (Transmissive)
    Good View atSymmetryResponse Speed14 (Typ.)(G to G) (ms)
    Viewing Angle89/89/89/89 (Typ.)(CR≥10)Operating ModeIPS, Normally Black, Transmissive
    Color Performance :ChromaticityWx:0.313; Wy:0.329Support Color16.7M (8-bit)
    Color Temperature6485KWhite Uniformity1.33 (Max.)(9 points)
    1931 Color Gamut :NTSC Ratio80%sRGB100% coverage
    Adobe RGB78% coverageDCI-P384% coverage
    Rec.202060% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    LG Display LM238WQ1-SSA1 Mechanical Details

    Pixel Features :Number of Pixel2560(RGB)×1440 [Quad-HD]ArrangementRGB Vertical Stripe
    Dot Pitch(W×H)0.06845×0.20535 mmPixel Pitch(W×H)0.20535×0.20535 mm [123PPI]
    Physical Size :Active Viewing525.7(W)×295.7(H) mmOverall Dim.535(W)×313(H) mm
    Bezel Opening-Overall Depth6.75/13.15 (Typ./Max.) mm
    Outline Features :Form ShapeFlat RectangleOrientationLandscape type
    Aspect Ratio(W:H)16:9Shape Style3-side borderless
    Fixation :Rear mounting holes (15-M3)
    Other Detail :Mass2.26Kgs (Typ.)SurfaceAntiglare (Haze 25%), Hard coating (3H)

    LG Display LM238WQ1-SSA1 Interface Details

    Signal Electrical :Input Current0.42/0.52A (Typ./Max.)Input Voltage10.0V (Typ.)
    Consumption4.2/5.2W (Typ./Max.)Signal InterfaceLVDS (4 ch, 8-bit)
    Interface Features :PositionPhysical TypeConnector
    Signal Interface :BrandModelAmountPin PitchPin AmountPin Assignment
    UJUIS050-C51B-C39-A1 pcs0.5 mm51 pins
    UJUIS050-C41B-C39-A1 pcs0.5 mm41 pins

    LG Display LM238WQ1-SSA1 Lightting Details

    Lamp Features:Lamp Shape4 stringsLamp TypeWLEDPositionEdge light type
    Exchange-Amount15S4PLife30K(Min.) (Hours)
    Lamp Electrical :Input Current60/65mA (Typ./Max.)Input Voltage42.5±3V
    Consumption10.2/10.9W (Typ./Max.)
    Interface Features :PositionPhysical TypeConnector
    Interface Detail :BrandModelAmountPin PitchPin AmountPin Assignment
    YEONHO10035WR-H06D1 pcs1.0 mm6 pinsBLE-6PINS-CCAACC
    Backlight Driver :No

    whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 525.7(W)×295.7(H) mm, outline size of 535(W)×313(H)×13.15(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.26Kgs (Typ.). As a IPS, Normally Black, Transmissive LCM product, LM238WQ1-SSA1 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 15S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. LM238WQ1-SSA1 utilizes LVDS (4 ch, 8-bit) as it's signal inputting systerm, which connected by 92 pins Connector with power supply voltage of 10.0V (Typ.)
