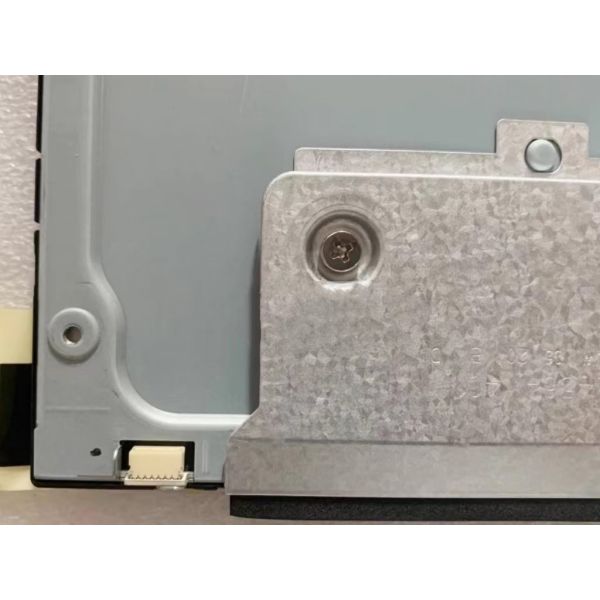

    LM240WUB-SSC1 LG Display 24.0" 1920(RGB)×1200, 350 cd/m² INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : LG Display
    Model Number : LM240WUB-SSC1
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROWS
    Delivery Time : 1-2DAYS
    • Product Details
    • Company Profile

    LM240WUB-SSC1 LG Display 24.0" 1920(RGB)×1200, 350 cd/m² INDUSTRIAL LCD DISPLAY

    LG Display LM240WUB-SSC1 Application Details

    Basic Detail :ManufacturerModel NameLM240WUB-SSC1
    Panel Typea-Si TFT-LCD , LCMAnother Name-
    Panel Size24.0 inchDesigned For








    Maximum Ratings :OP Temperature0 ~ 50 °CST Temperature-20 ~ 60 °C

    LG Display LM240WUB-SSC1 Mechanical Details

    Pixel Features :Number of Pixel1920(RGB)×1200 [WUXGA]ArrangementRGB Vertical Stripe
    Dot Pitch(W×H)0.090×0.270 mmPixel Pitch(W×H)0.270×0.270 mm [94PPI]
    Physical Size :Active Viewing518.4(W)×324(H) mmOverall Dim.528.2(W)×335.9(H) mm
    Bezel Opening-Overall Depth8.8/12.8 (Typ./Max.) mm
    Outline Features :Form ShapeFlat RectangleOrientationLandscape type
    Aspect Ratio(W:H)16:10Shape Style4-side borderless
    Fixation :Rear mounting holes (9-M3)
    Other Detail :Mass2.15/2.26Kgs (Typ./Max.)SurfaceAntiglare (Haze 25%), Hard coating (3H)

    LG Display LM240WUB-SSC1 Optical Details

    Basic Information :Luminance350 cd/m² (Typ.)Contrast Ratio1000 : 1 (Typ.) (Transmissive)
    Good View atSymmetryResponse Speed14 (Typ.)(G to G) (ms)
    Viewing Angle89/89/89/89 (Typ.)(CR≥10)Operating ModeIPS, Normally Black, Transmissive
    Color Performance :ChromaticityWx:0.313; Wy:0.329Support Color16.7M (6-bit + Hi-FRC)
    Color Temperature6485KWhite Uniformity1.33 (Max.)(9 points)
    1931 Color Gamut :NTSC Ratio80%sRGB100% coverage
    Adobe RGB78% coverageDCI-P383% coverage
    Rec.202059% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    LG Display LM240WUB-SSC1 Interface Details

    Signal Electrical :Input Current485/610mA (Typ./Max.)Input Voltage5.0V (Typ.)
    Consumption2.45/3.05W (Typ./Max.)Signal InterfaceLVDS (2 ch, 8-bit)
    Interface Features :PositionPhysical TypeConnector
    Signal Interface :BrandModelAmountPin PitchPin AmountPin Assignment
    UJUIS100-L30O-C231 pcs1.0 mm30 pinsLVDS-30P2C8B-160B

    LG Display LM240WUB-SSC1 Lightting Details

    Lamp Features:Lamp Shape4 stringsLamp TypeWLEDPositionEdge light type (Bottom side)
    Exchange-Amount17S4PLife30K(Min.) (Hours)
    Lamp Electrical :Input Current62/67mA (Typ./Max.)Input Voltage47.8±3.4V
    Consumption11.8/12.7W (Typ./Max.)
    Interface Features :PositionPhysical TypeConnector
    Interface Detail :BrandModelAmountPin PitchPin AmountPin Assignment
    JSTBM06B-SHJS-TB(HF)1 pcs1.0 mm6 pinsBLE-6PINS-CCAACC
    Backlight Driver :No

    whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 518.4(W)×324(H) mm, outline size of 528.2(W)×335.9(H)×12.8(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.15/2.26Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM240WUB-SSC1 can provides 350 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 17S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. LM240WUB-SSC1 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.)
